Stopper Cylinder RSQ/RSDQ/RSG/RSDG
|
・A wide range of models are available, so it is possible to select
a cylinder that meets your needs. Realizes the labor saving and automation of conveyor lines ・With auto switch (RSDQ series: RSDQ, RSDG series: RSDG) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Fixed mounting height | RSQ | Double acting Double acting with spring Single acting, spring extend |
12，16，20，32，40，50 |
| Adjustable mounting height | RSG | Double acting Double acting with spring Single acting, spring extend |
40，50 |
Stopper CylinderRSQ/RSDQ/RSG/RSDG
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Download |
|---|---|---|---|
| Fixed mounting height | RSQ | Double acting Double acting with spring Single acting, spring extend |
|
| Adjustable mounting height | RSG | Double acting Double acting with spring Single acting, spring extend |
|

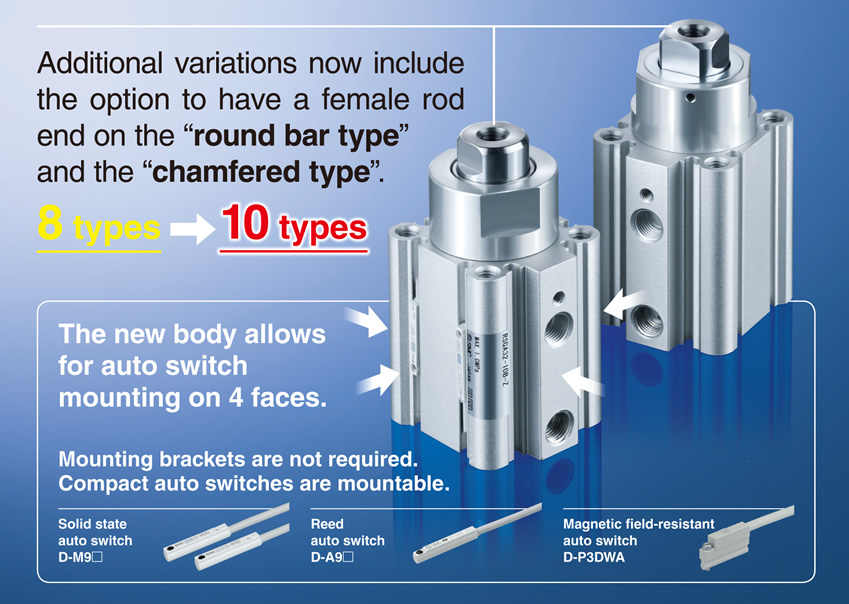

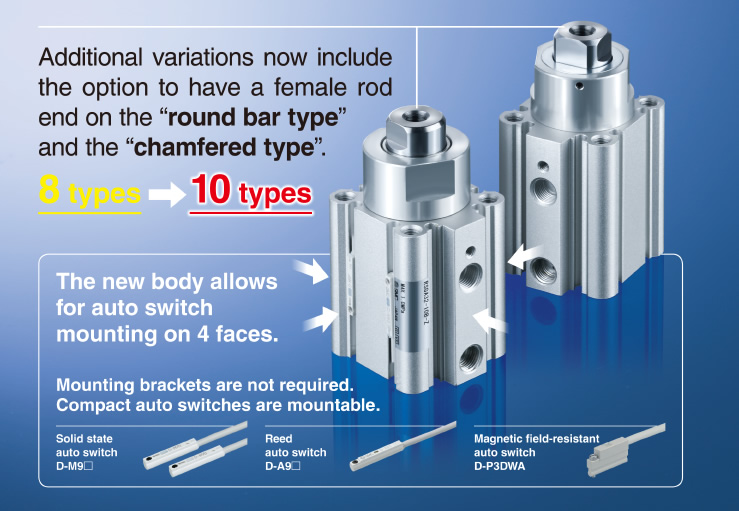

■Additional variations now include the option to have a female rod end on the “round bar type” and the “chamfered type”. : 8 types → 10 types
■The new body allows for auto switch mounting on 4 faces.
■Various rod end configurations:10 types

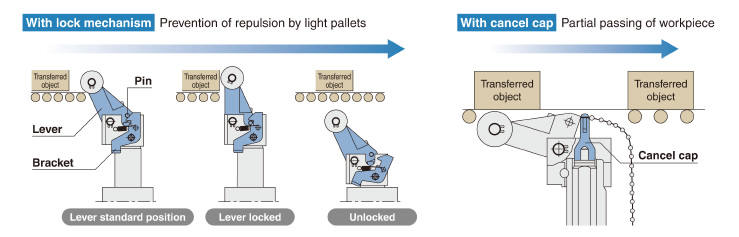

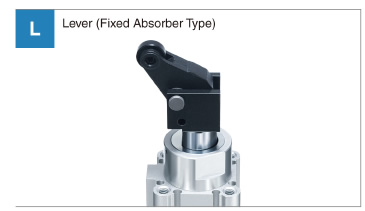

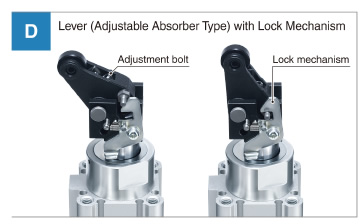

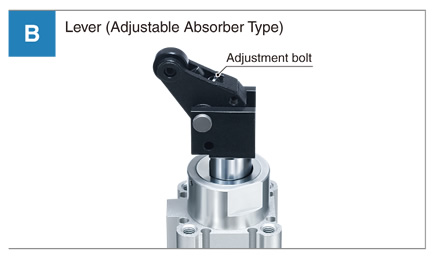

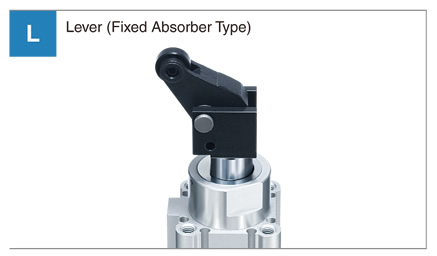

■Lever type rod end selected according to applications
■Easy replacement of shock absorbers

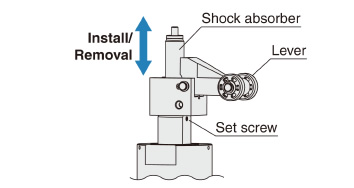

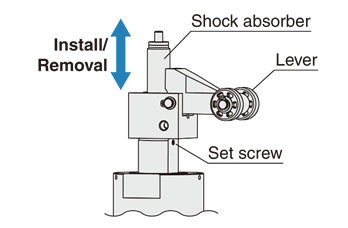

- Easy replacement of shock absorbers
（ø32, ø40, ø50） - Replaceable just by loosening the set screw

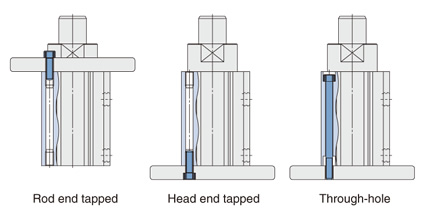

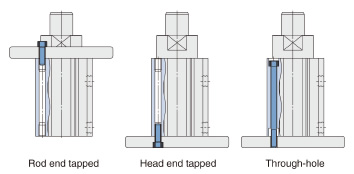

■Three types of mounting

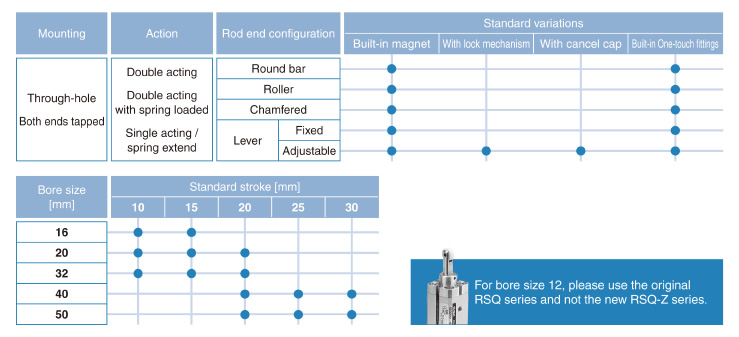

■Series Variations
