Mark-free Pad (Vacuum Suction Cup) ZP2

	・For use where adsorption marks must not be left on workpieces ・Pad which reduces the number of adsorption 　marks left on workpieces by the rubber

Data Download CAD PDF

Other Data	Safety Instructions　 Vacuum Equipment/Precautions　 Vacuum Pads/Precautions　 Series Variations/Model Selection　 Standard: Mounting Bracket Assembly (p.121-130)　 High Rigidity: Mounting Bracket Assembly (p.255-263)　 Applicable Pad List/Adapter Buffe No.　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b
ZP2	Flat type	φ4,φ6,φ8,φ10,φ13,φ16, φ20,φ25,φ32,φ40,φ50
ZP2	High Rigidity (Flat type with ribs)	φ40,φ50,φ63,φ80,φ100,φ125
ZP2	Resin Attachment	Pad diameter: φ6,φ8,φ10,φ13, φ16,φ20,φ25,φ32

Mark-free Pad (Vacuum Suction Cup)ZP2

Series	Download
ZP2
ZP2
ZP2

■For use where adsorption marks must not be left on workpieces

Application example

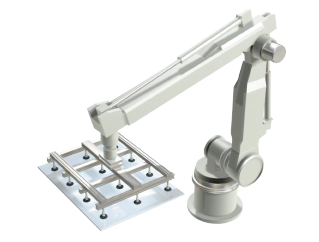

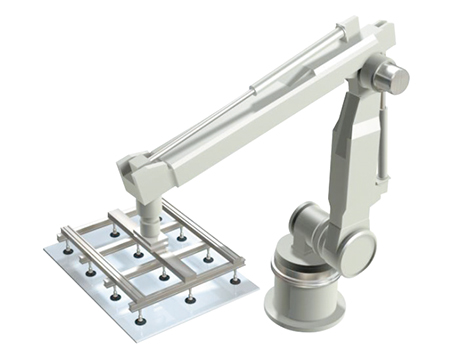

:Suction transport of glass substrate

・Solar cell manufacturing equipment
・Semiconductor manufacturing equipment
・FPD production equipment etc

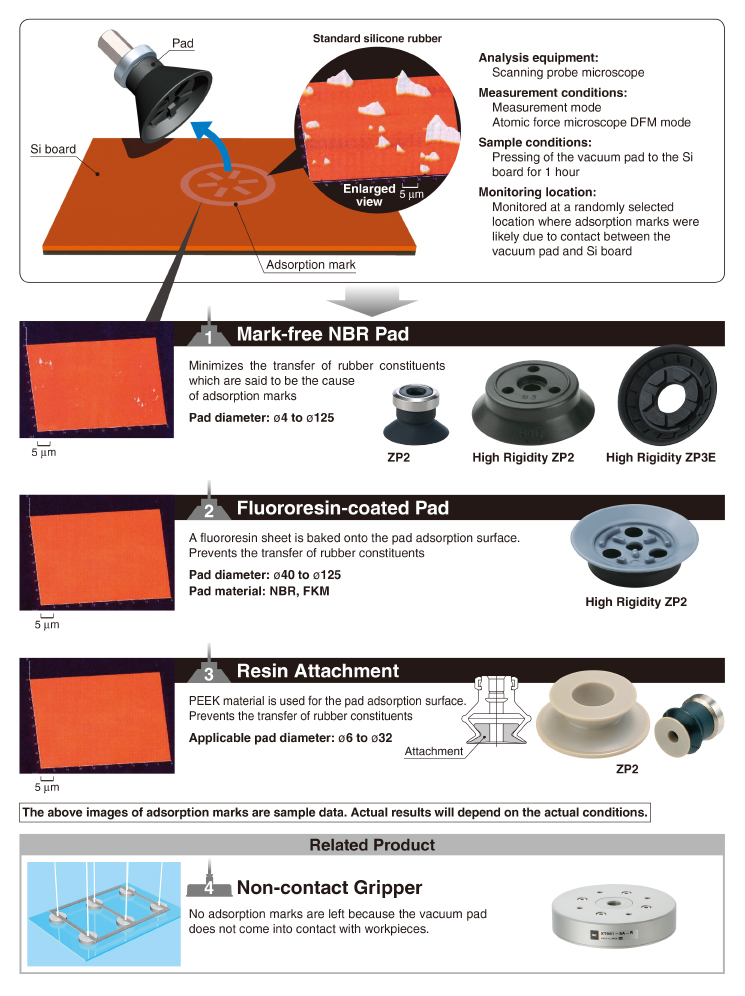

■Minimizes the transfer of rubber constituents to workpieces

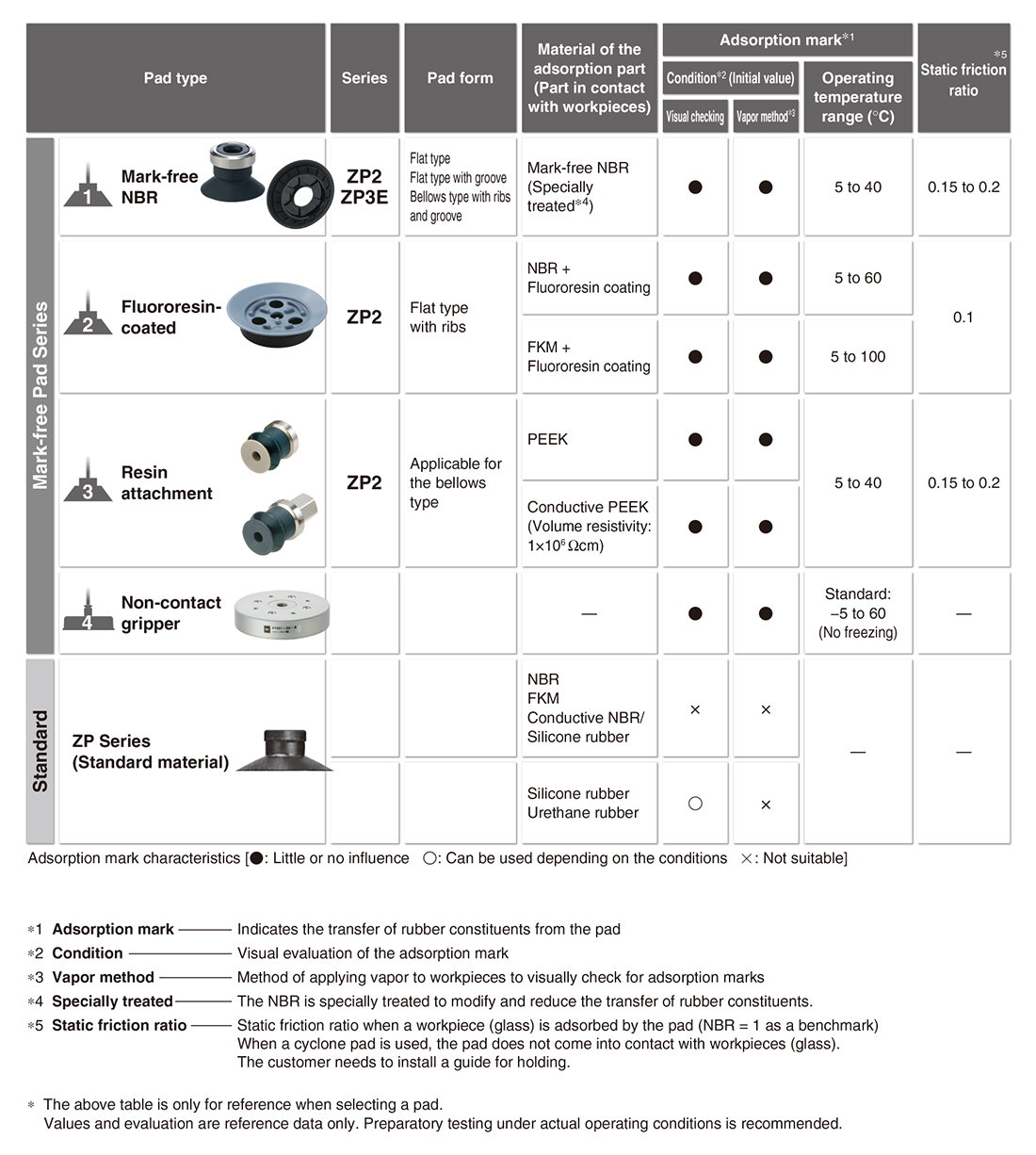

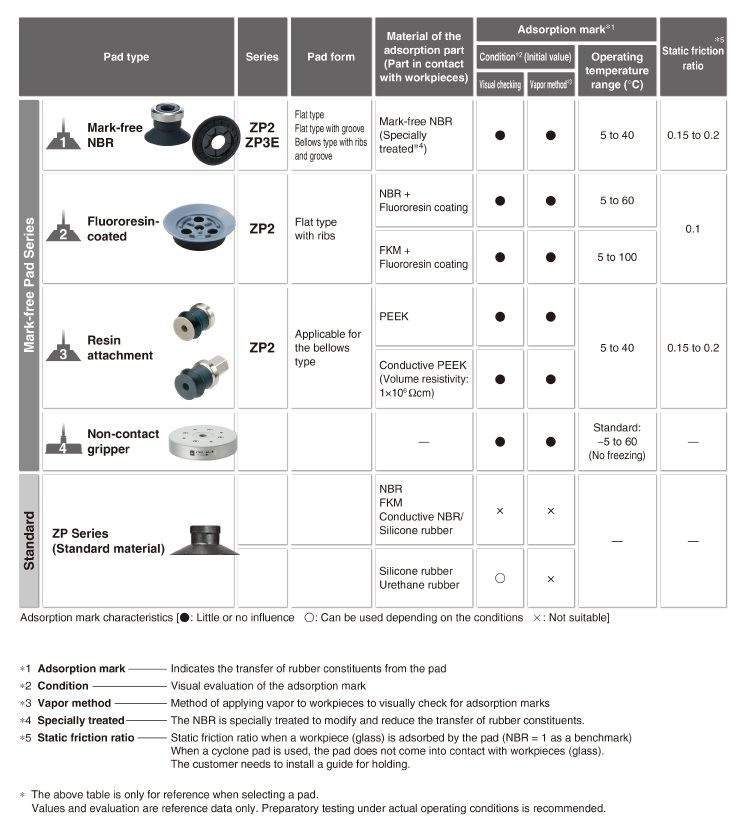

■Variations
