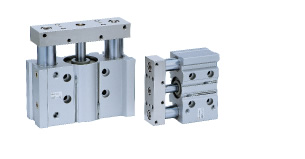

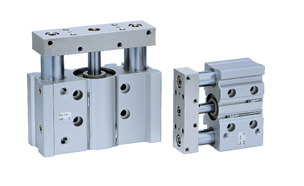

Compact Guide Cylinder MGP

	・Weight reduced by up to 24% with a shorter guide rod and 　thinner plate. ・The space required between the bottom of the cylinder body 　and your equipment is reduced because of the shortening of 　the guide rod by a max. of 22 mm. ・Round type and magnetic field resistant auto switches can be 　mounted directly without a spacer. ・With flange MGP□F

Data Download CAD Manual PDF

Other Data	Safety Instructions　 Actuators/Precautions　 Auto Switches/Precautions　 Model Selection/Technical Data　 Quick Selection Table　 Simple Specials　 Made to Order Common Specifications　 Green Procurement (RoHS)

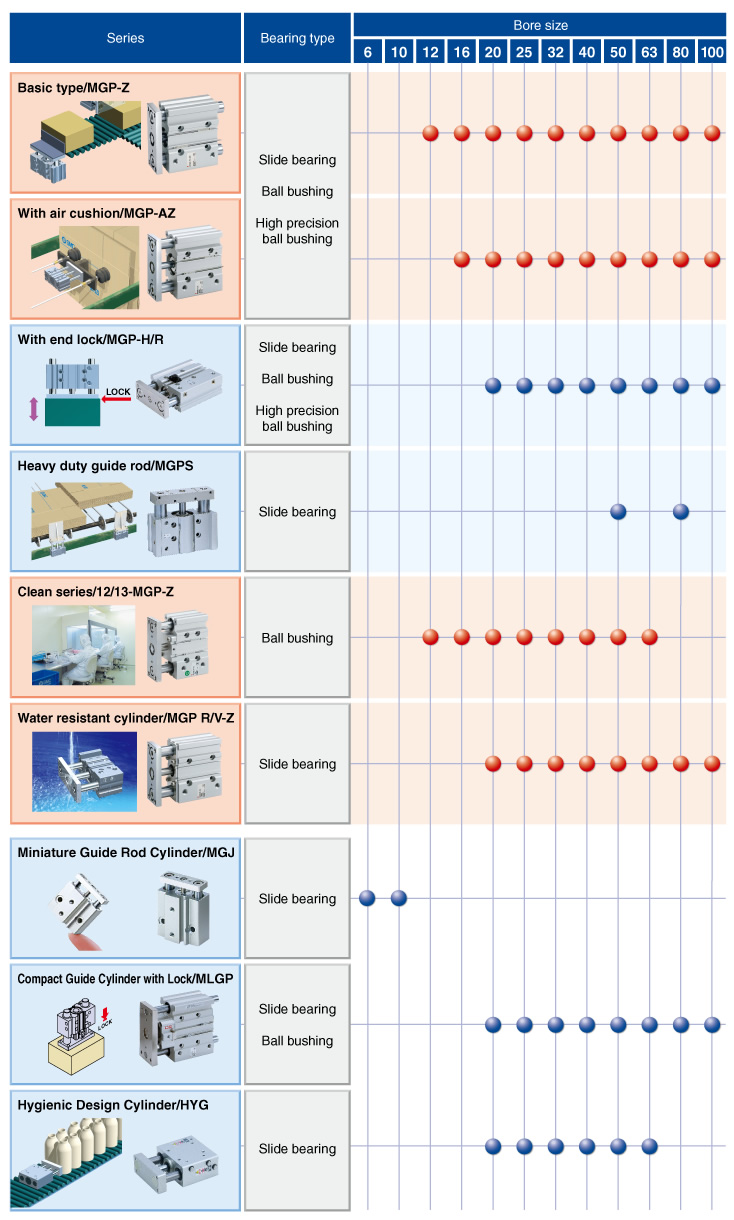

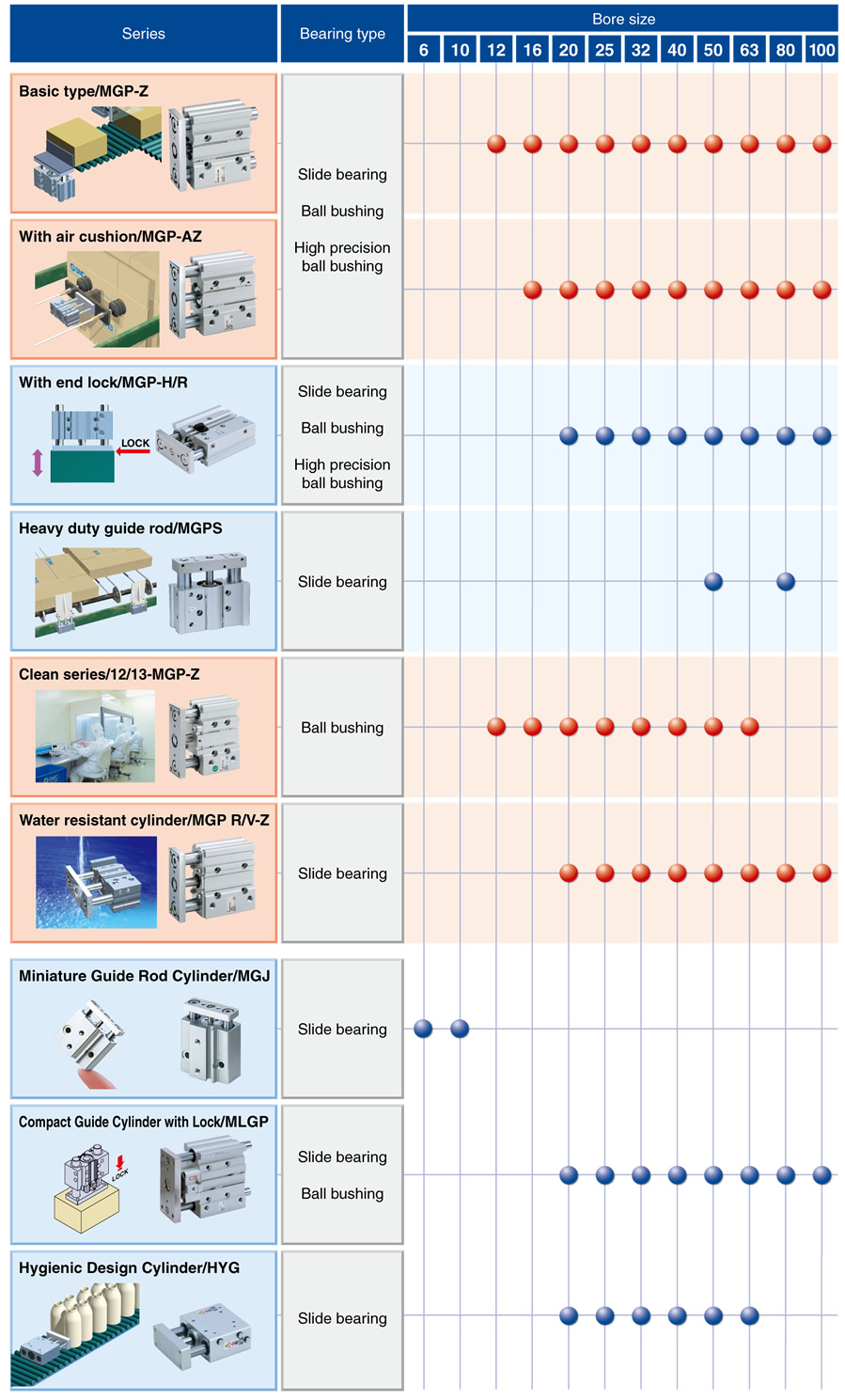

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)
Basic type	Slide bearing	MGPM-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Basic type	Ball bushing	MGPL-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Basic type	High precision ball bushing	MGPA-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Air cushion	Slide bearing	MGPM-AZ	Double acting	16，20，25，32，40 50，63，80，100
Air cushion	Ball bushing	MGPL-AZ	Double acting	16，20，25，32，40 50，63，80，100
Air cushion	High precision ball bushing	MGPA-AZ	Double acting	16，20，25，32，40 50，63，80，100
Water resistant	Slide bearing	MGPMR-Z	Double acting	20，25，32，40 50，63，80，100
End lock	Slide/ball bushing	MGP	Double acting	20，25，32，40 50，63，80，100

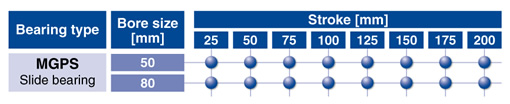

Strong guide rod	Slide bearing	MGPS	Double acting	50，80

Compact Guide CylinderMGP

Series	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)
Basic type	MGPM-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Basic type	MGPL-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Basic type	MGPA-Z	Double acting	12，16，20，25，32，40 50，63，80，100
Air cushion	MGPM-AZ	Double acting	16，20，25，32，40 50，63，80，100
Air cushion	MGPL-AZ	Double acting	16，20，25，32，40 50，63，80，100
Air cushion	MGPA-AZ	Double acting	16，20，25，32，40 50，63，80，100
Water resistant	MGPMR-Z	Double acting	20，25，32，40 50，63，80，100

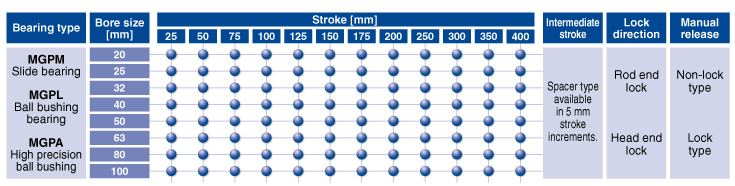

End lock	MGP	Double acting	20，25，32，40 50，63，80，100

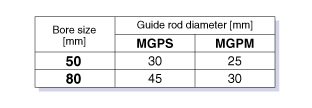

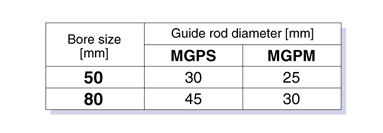

Strong guide rod	MGPS	Double acting	50，80

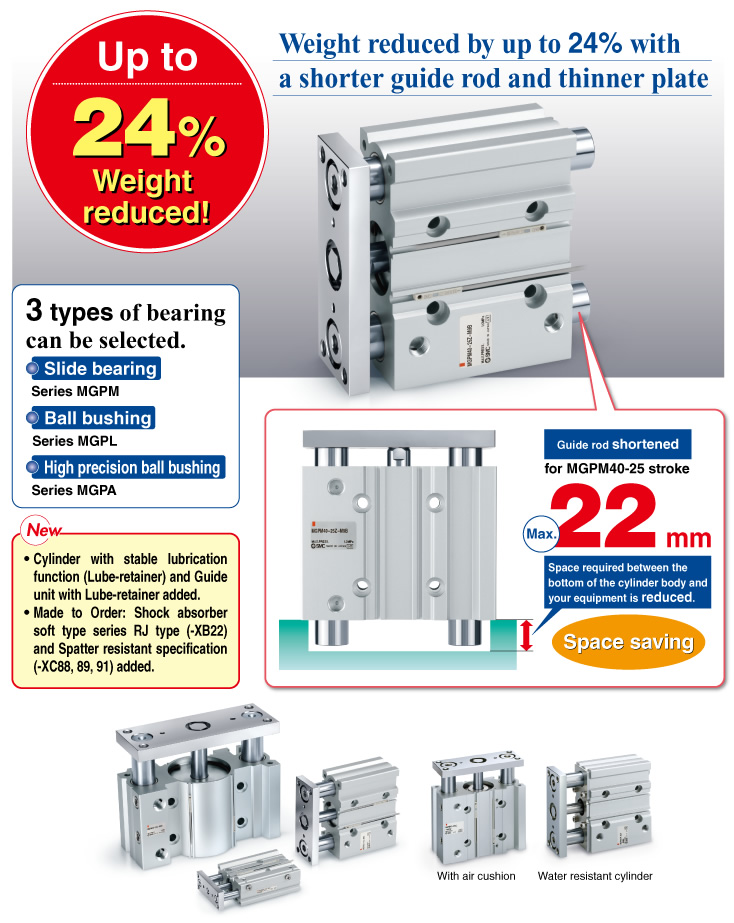

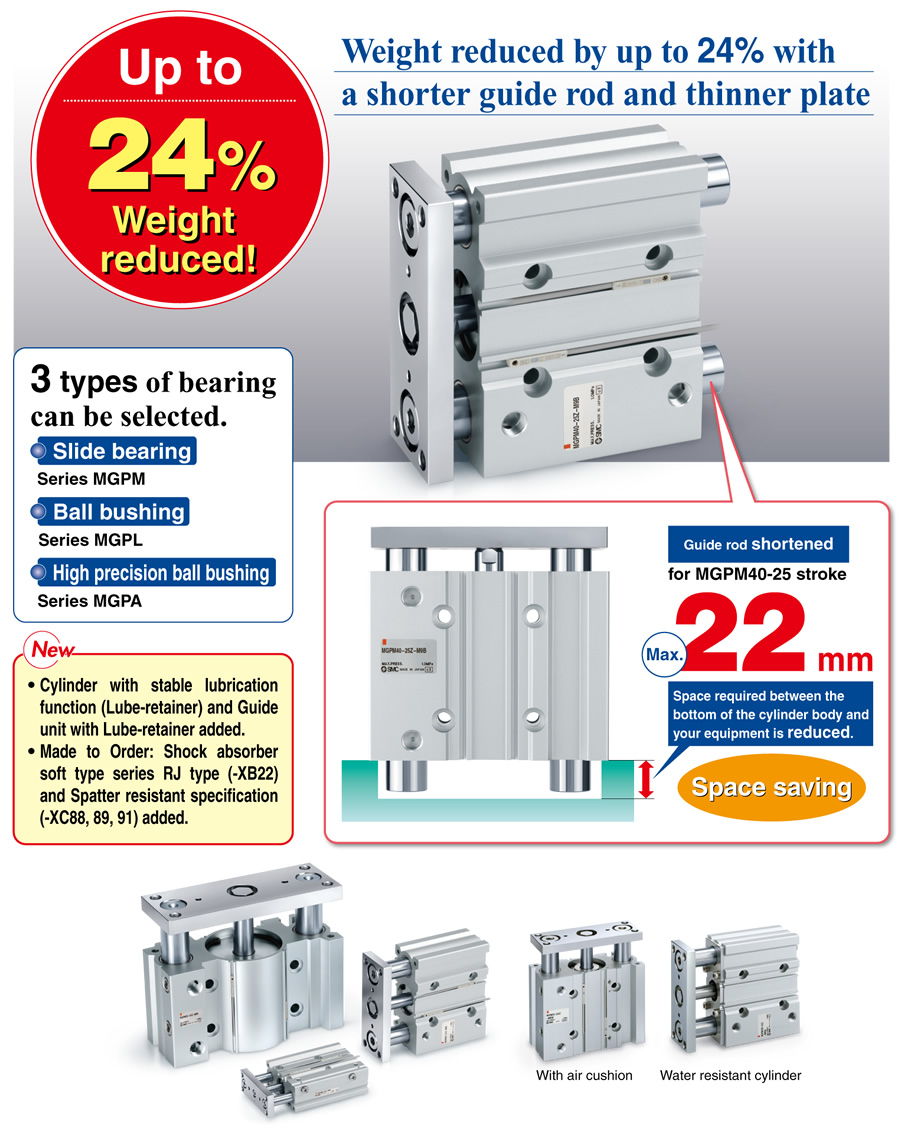

■Weight reduced by up to 24% with a shorter guide rod and thinner plate

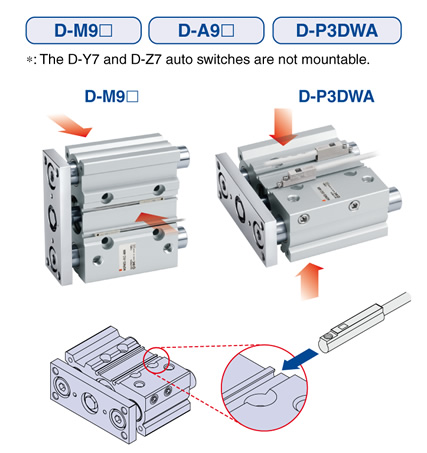

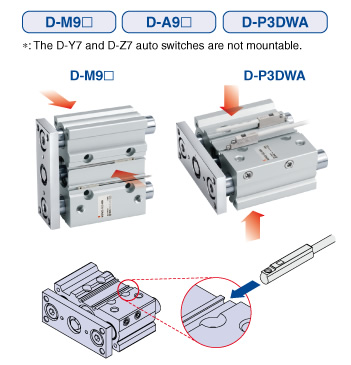

■Small auto switches or magnetic field resistant auto switches can be directly mounted on 2 surfaces.

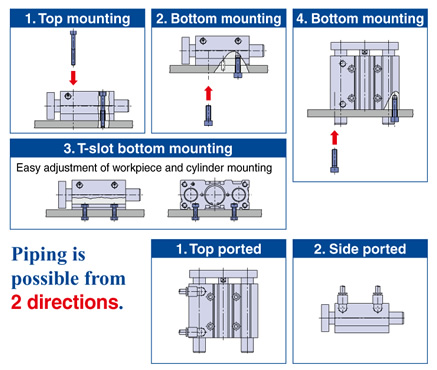

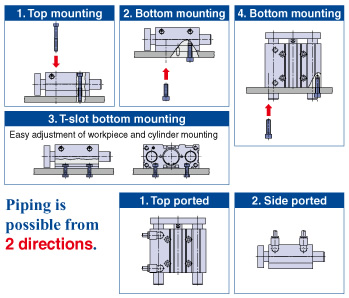

■4 types of mounting are possible.
Piping is possible from 2 directions.

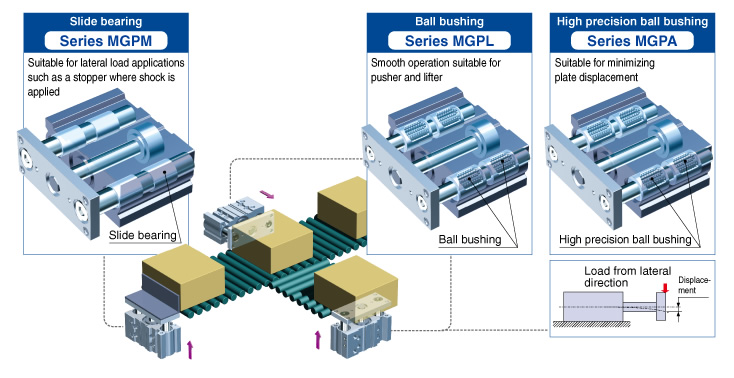

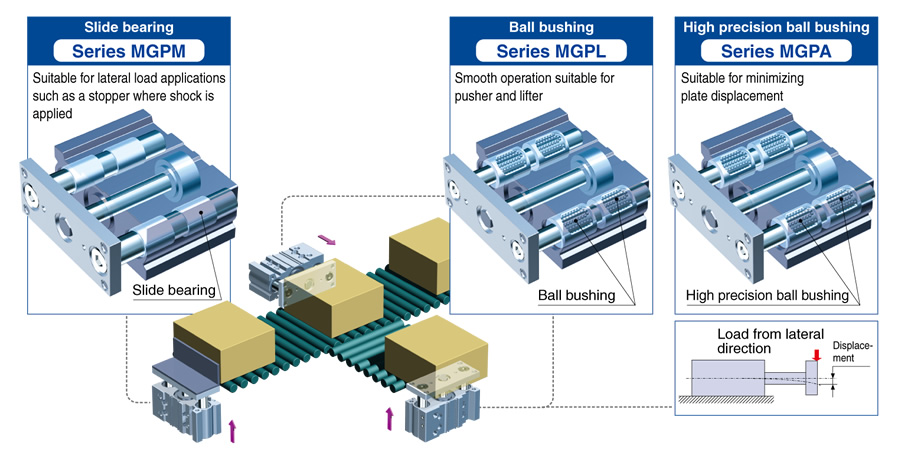

■3 types of bearing can be selected.

■Basic Type

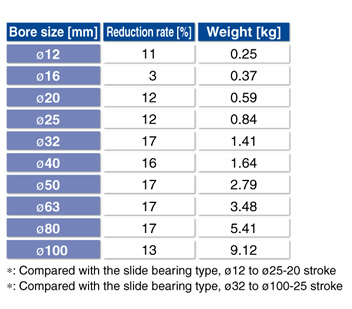

●Weight reduced by up to 17%

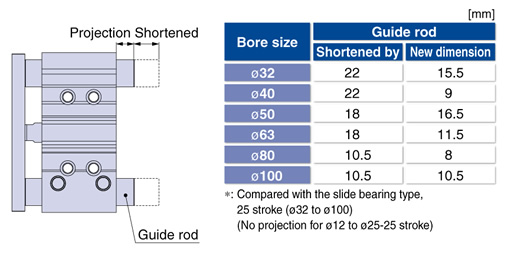

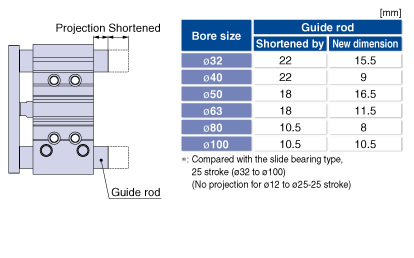

●Guide rod shortened

●Performance and strength (rigidity) are equivalent to the current MGP series.
●Mounting dimensions are equivalent to the current MGP series.

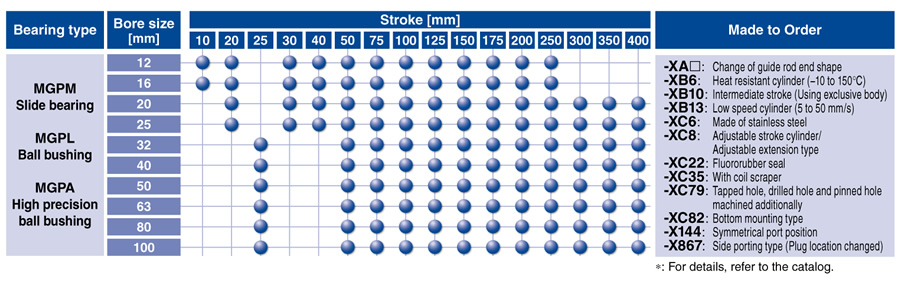

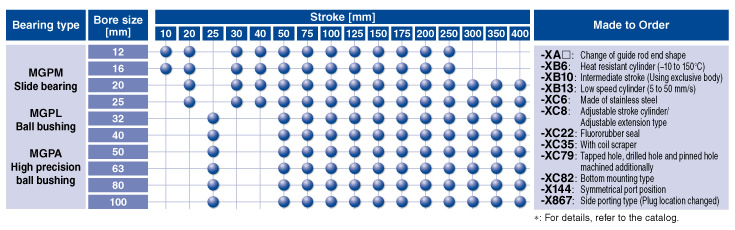

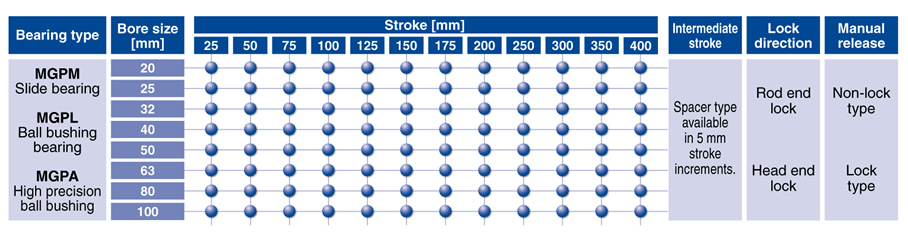

●Series MGP (Basic Type), Stroke Variations

■With Air Cushion

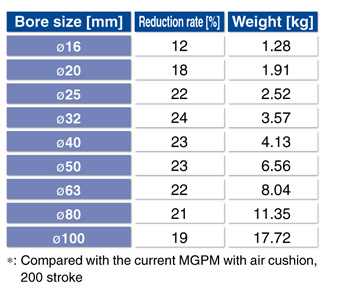

●Weight reduced by up to 24%

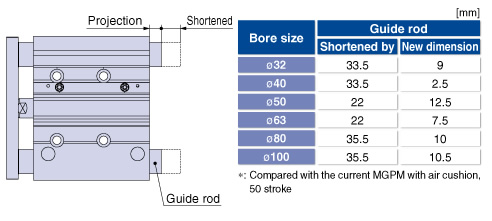

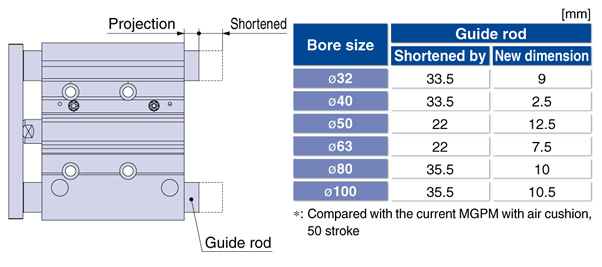

●Guide rod shortened by up to 35.5 mm

　（MGPM100-50 stroke）

●Performance and strength are equivalent to the current MGP series with air cushion.
●Mounting dimensions are equivalent to the current MGP series with air cushion.

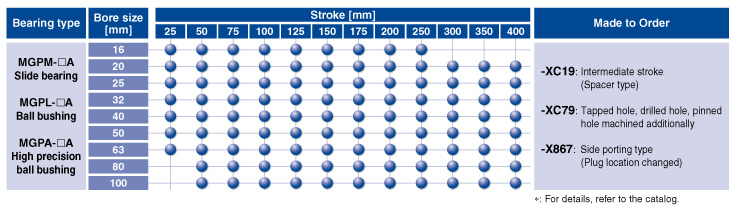

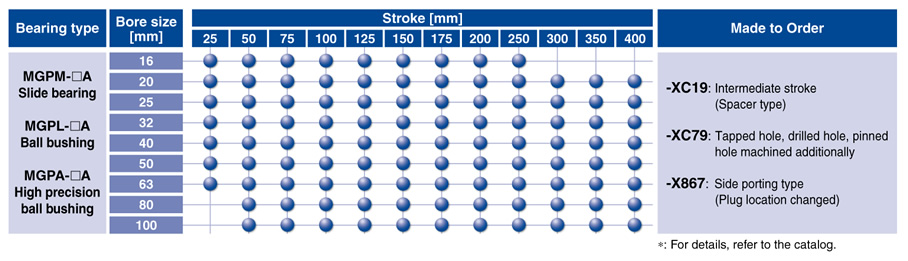

●Series MGP (With Air Cushion), Stroke Variations
