Bernoulli Type Non-contact Gripper XT661-X427
|
・For the adsorption transfer of thin cloths, films, printed circuit boards, etc.

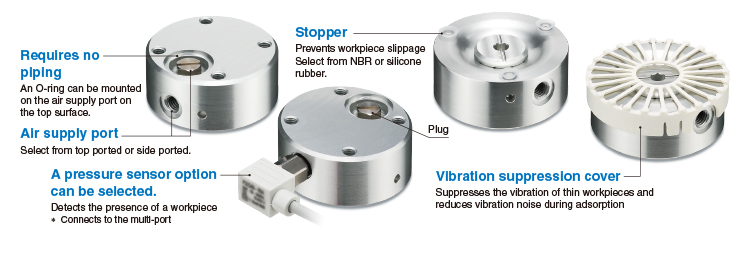

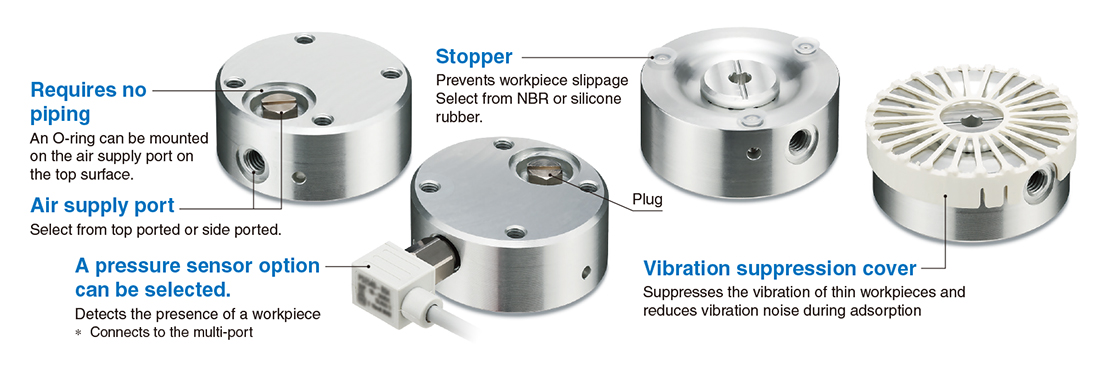

・High lifting force compared with the existing model: 4.4 times (Supply pressure: 0.5 [MPa], For non-permeable workpieces) ・Stopper/With vibration suppression cover ・A pressure sensor option can be selected. |
|
| Other Data |
|---|
Bernoulli Type Non-contact GripperXT661-X427
| Download |
|---|
|
|
■For the adsorption transfer of thin cloths, films, printed circuit boards, etc.

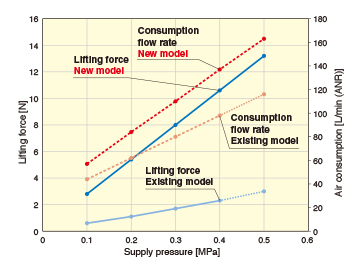

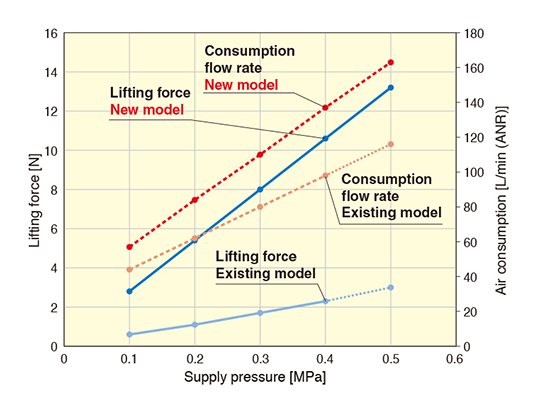

■High lifting force compared with the existing model: 4.4 times
(Supply pressure: 0.5 [MPa], For non-permeable workpieces)

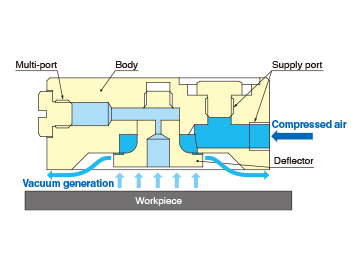

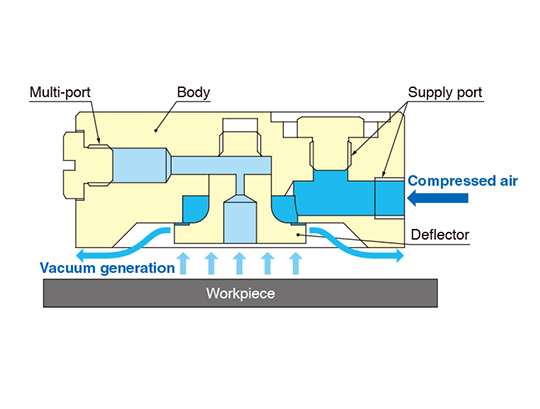

■Construction and working principle

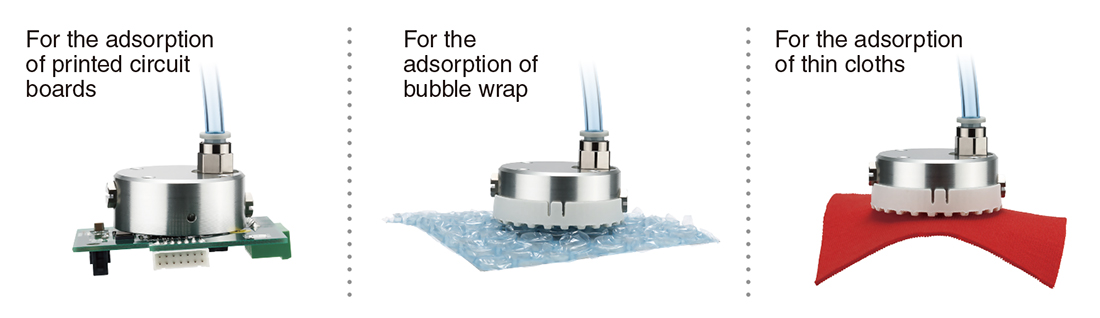

■Application Examples
