Dust-tight/Water-jet-proof (IP65 Equivalent/IP67 Equivalent) Electric Actuator/Rod Type LEY-X7

	・Enclosure: IP65 equivalent/IP67 equivalent ・Max. stroke: 500 mm (For sizes 32 and 40)

Data Download PDF

Other Data	Safety Instructions　 Electric Actuators/Precautions　 Auto Switches/Precautions　 Features　 Series Variations　 Simplified Selection Flow Chart　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size	Power consumption (W)	Model
Step motor (Servo/24 VDC)	LEY25-X7	30 to 400	MAX.452	MAX.300	3, 6, 12
Step motor (Servo/24 VDC)	LEY32-X7	30 to 500	MAX.707	MAX.300	4, 8, 16
Step motor (Servo/24 VDC)	LEY40-X7	30 to 500	MAX.1058	MAX.300	4, 8, 16
Servo motor (24 VDC)	LEY25A-X7	30 to 400	MAX.130	MAX.300	3, 6, 12

Dust-tight/Water-jet-proof (IP65 Equivalent/IP67 Equivalent) Electric Actuator/Rod TypeLEY-X7

Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Download
LEY25-X7
LEY32-X7
LEY40-X7
LEY25A-X7

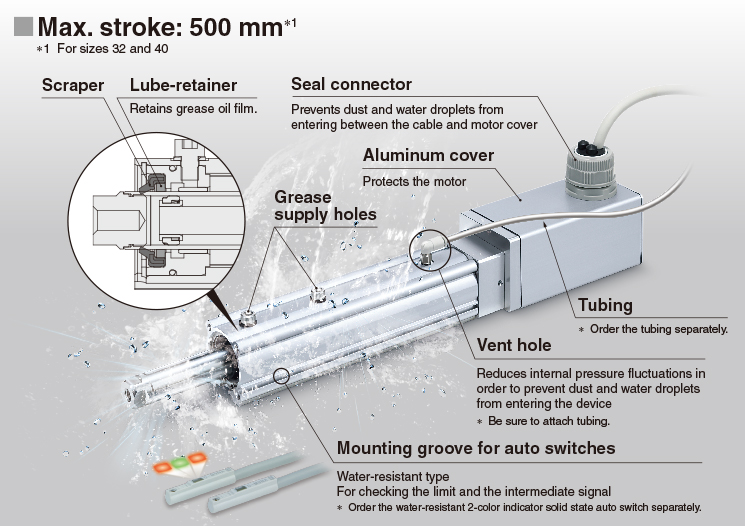

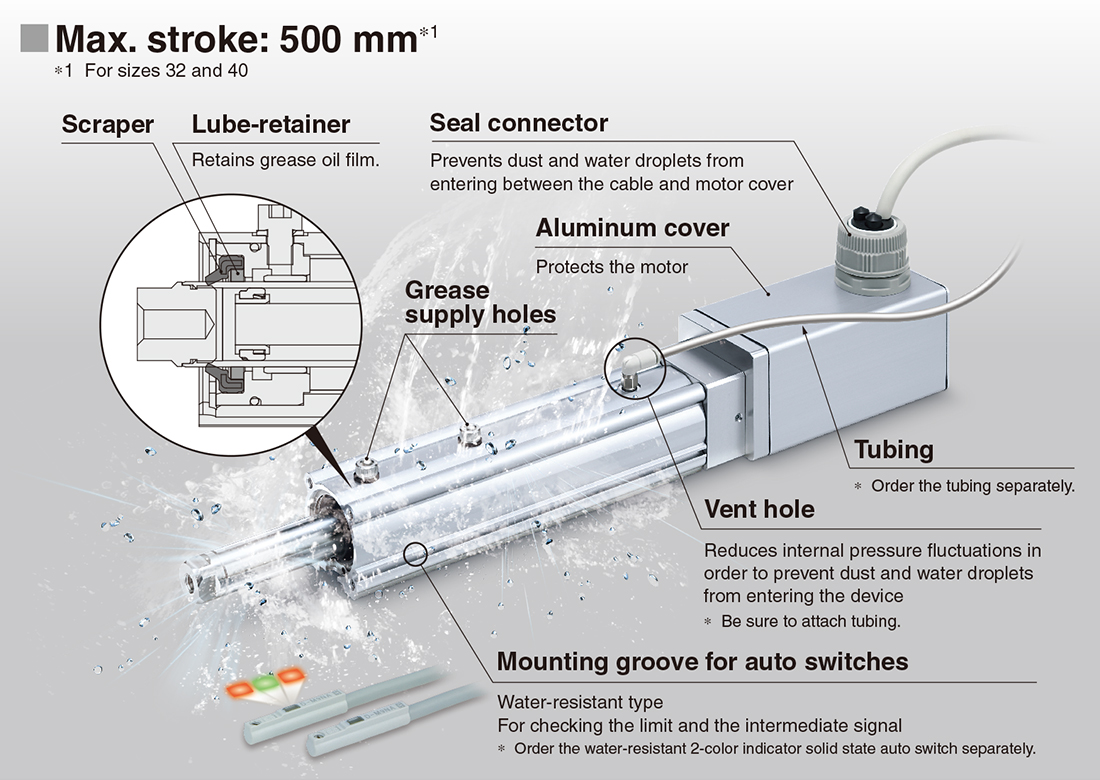

■Enclosure: IP65 equivalent/IP67 equivalent

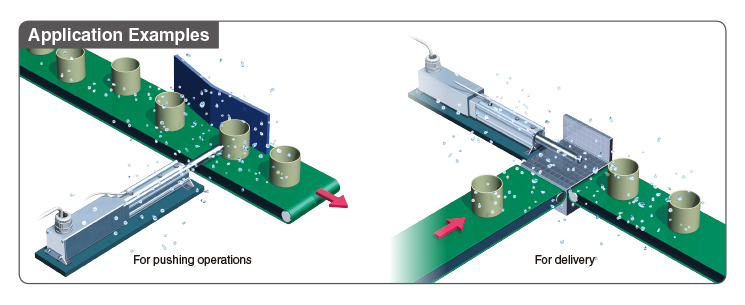

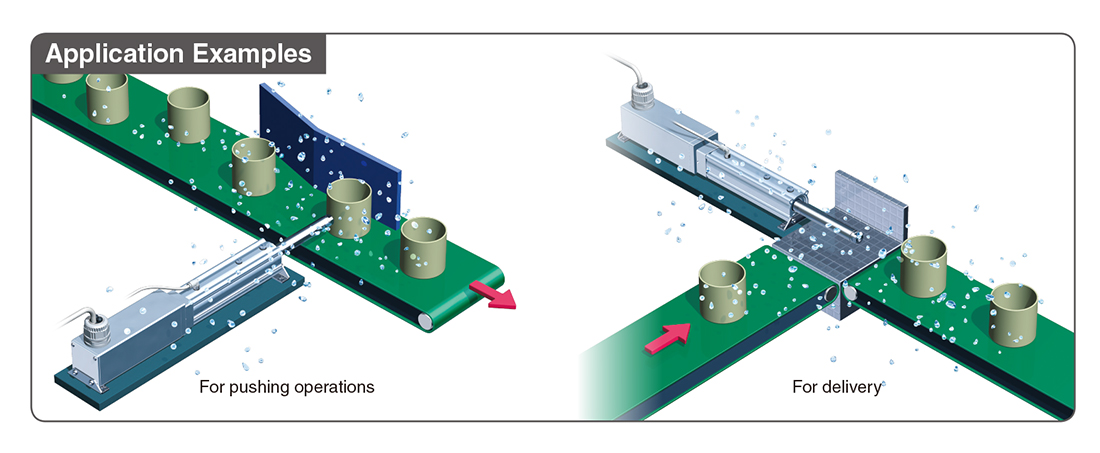

■Application Examples
