Digital Flow Switch for Water PF3W7□-X445
|
・IO-Link version V1.1
・Process data length 6-byte input ・Transmission speed COM2 (38.4 kbps) ・Minimum cycle time 3.5 ms ・IO-Link port type Class A |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| PF3W704-X445 | Water | 0.5 to 4 L/min |
| PF3W720-X445 | Water | 2 to 16 L/min |
| PF3W740-X445 | Water | 5 to 40 L/min |
Digital Flow Switch for WaterPF3W7□-X445
| Series | Download |
|---|---|
| PF3W704-X445 |
|
| PF3W720-X445 |
|
| PF3W740-X445 |
|

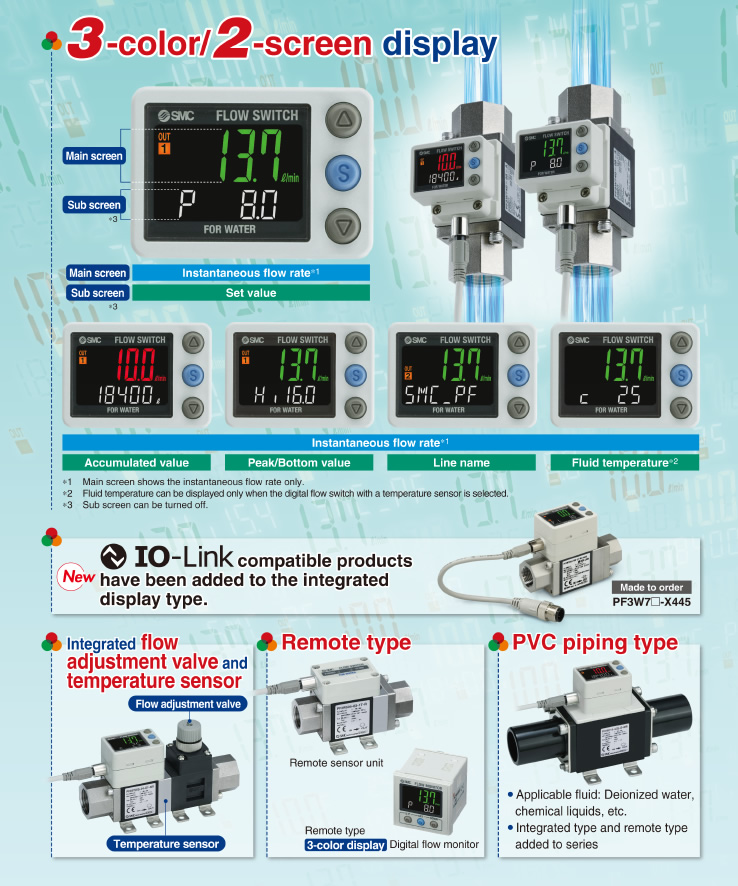

■3-Color Display Digital Flow Switch for Water

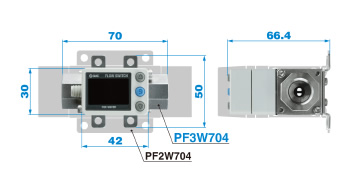

■40% smaller than the current product

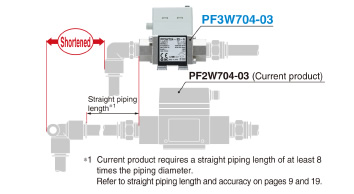

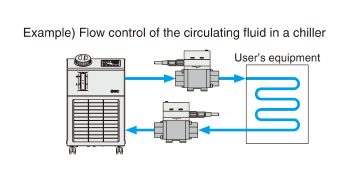

■Reduced required piping space

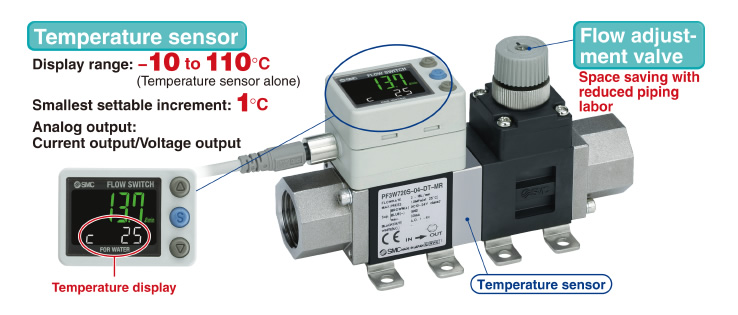

■Temperature sensor, Flow adjustment valve
■Fluid temperature: 0 to 90°C
■Non-grease
■Ethylene glycol aqueous solution can be used.

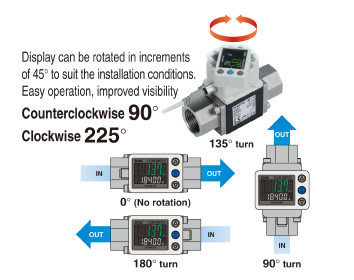

■Rotatable display

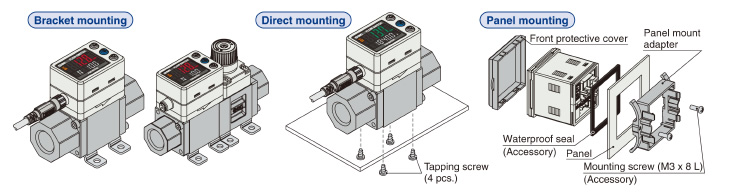

■Mounting

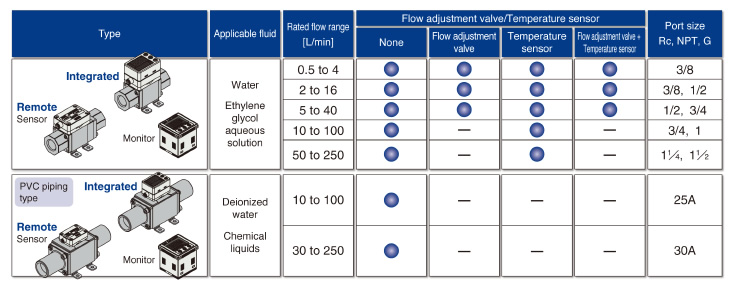

■Variations
Added: Measured flow rate 250 L/min type

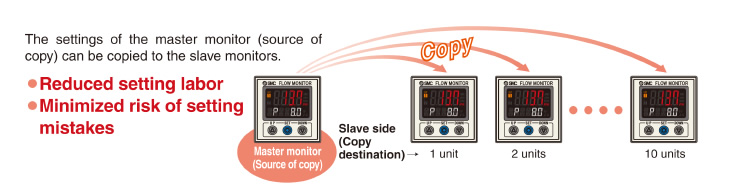

■3-color display Digital flow monitor: The set value can be copied to up to 10 flow monitors simultaneously
■Indicator
Visually check the status of the sensor via the indicator.

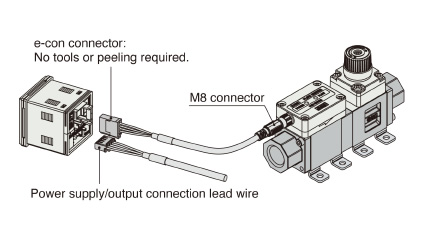

■Connector reduces wiring labor
■PVC piping type

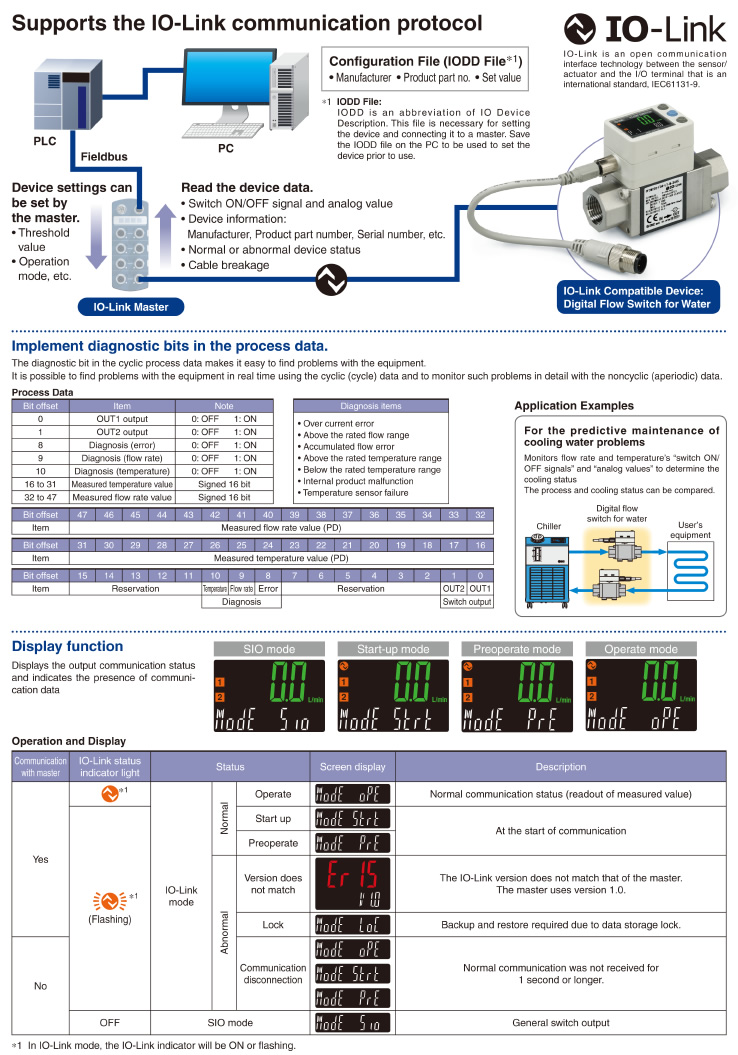

■Supports the IO-Link communication protocol
