Refrigerated Air Dryer IDF
|

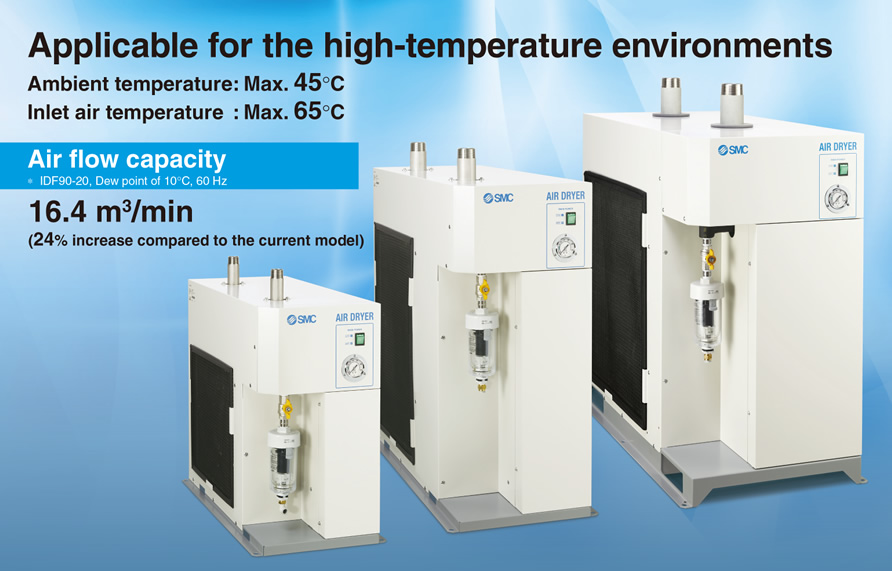

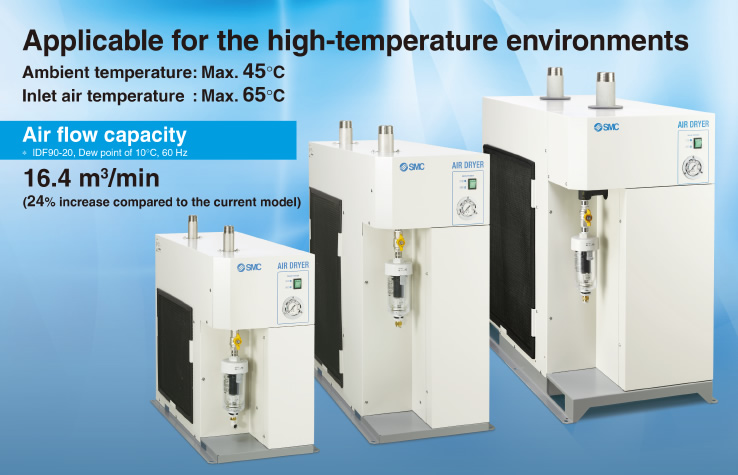

・Applicable for the high-temperature environments
Ambient temperature : Max. 45℃ Inlet air temperature : Max. 65℃ ・Increased air flow capacity |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
Model |
|---|---|---|---|---|---|
| IDF60 | 35℃ 0.7MPa |
5.3 | 6.1 | R410A（HFC） GWP：2088 |
R1 |
| IDF70 | 35℃ 0.7MPa |
7.5 | 8.6 | R410A（HFC） GWP：2088 |
R1 1/2 |
| IDF80 | 40℃ 0.7MPa |
10.9 | 12.8 | R410A（HFC） GWP：2088 |
R2 |
| IDF90 | 40℃ 0.7MPa |
13.5 | 15.5 | R410A（HFC） GWP：2088 |
R2 |
Refrigerated Air DryerIDF
| Series | Download |
|---|---|
| IDF60 |
|
| IDF70 |
|
| IDF80 |
|
| IDF90 |
|

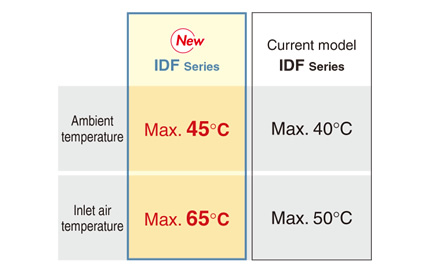

■Applicable for the hightemperature environments

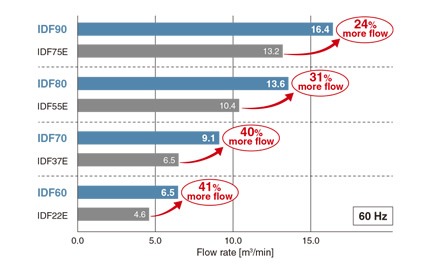

■Increased air flow capacity

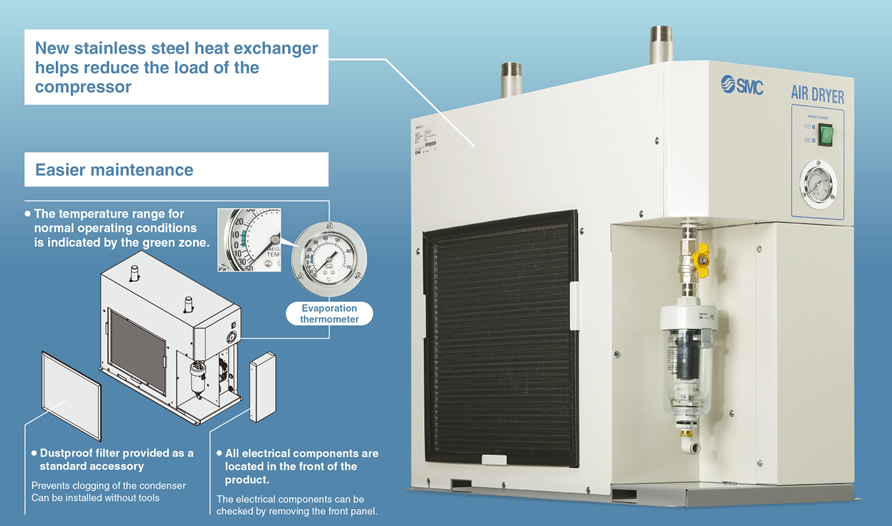

■Features ①

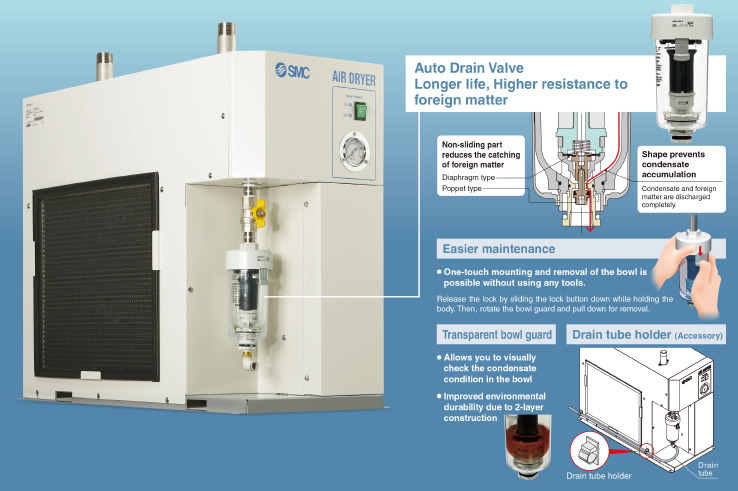

■Features ②

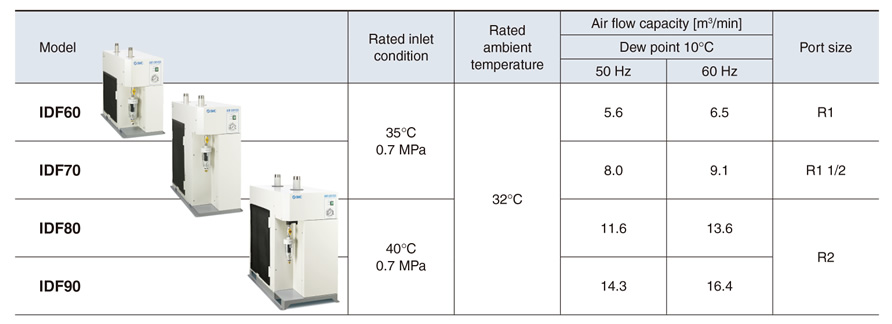

■Series Variations
■Options
・Cool compressed air output ［New］
・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual ［New］
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain
■Optional accessories
・Foundation bolt set
・Piping adapter
・Bypass piping set ［New］

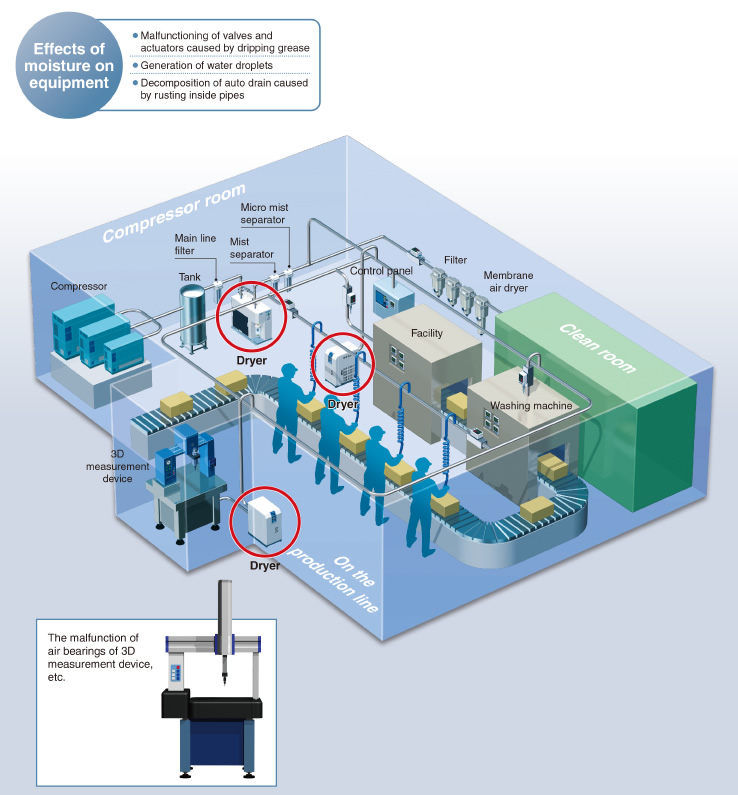

■Protect Pneumatic Equipment from Moisture!
An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
