3 Port 3 Position Valve VEX3
|
・The intermediate stopping of cylinders up to ø125 is possible.
・Power consumption: 1 W ・4 Manual override options: Non-locking push type Locking slotted type Push-turn locking slotted type Push-turn locking lever type |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| 3 port 3 position valve | VEX3 | Directional control valve |
3 Port 3 Position ValveVEX3
| Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|
| VEX3 |
|

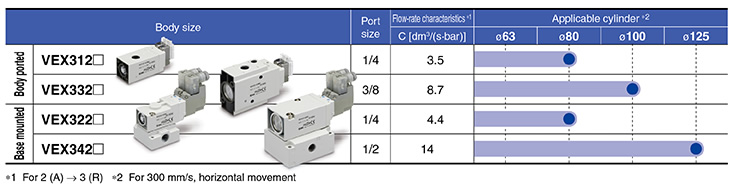

■Intermediate stopping of cylinders up to ø125 is possible
* For VEX332 □ , VEX342 □ , 300 mm/s, horizontal movement
■Power consumption: 1 W

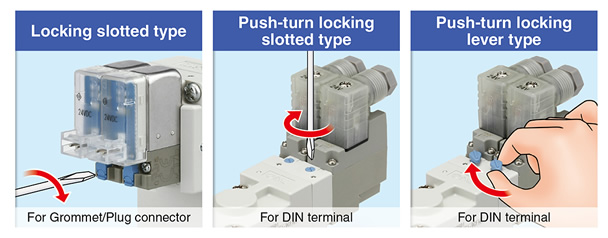

■3 Manual override options added

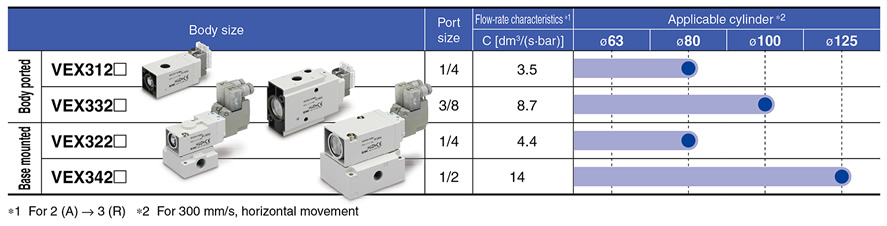

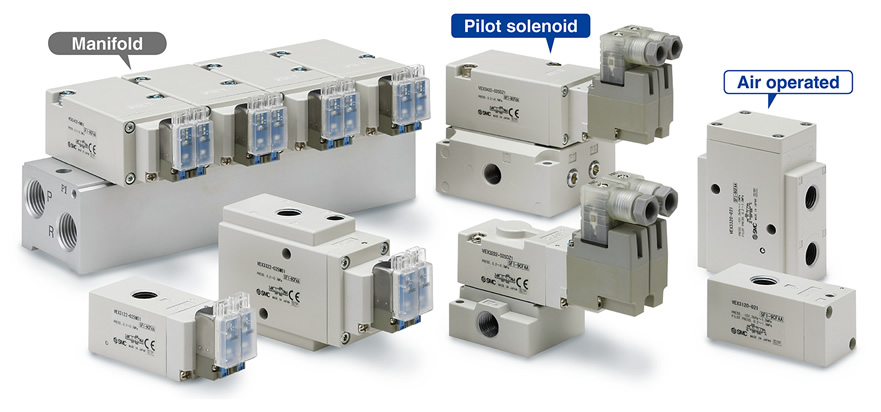

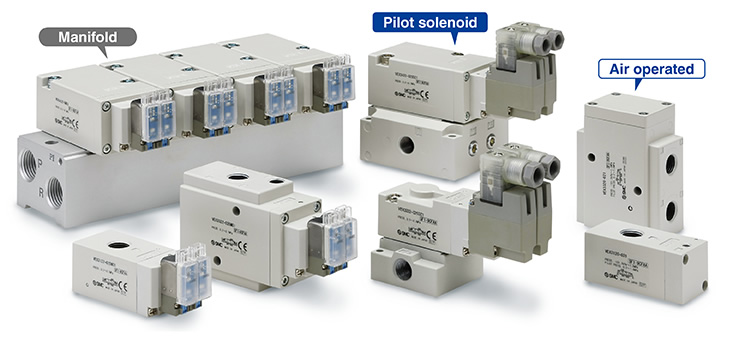

■Variations
■Applications

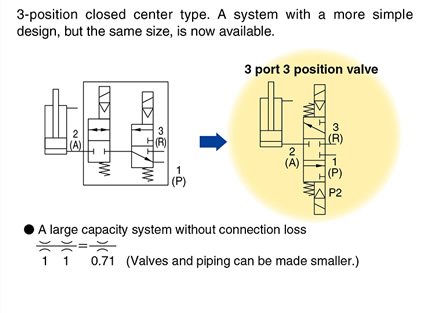

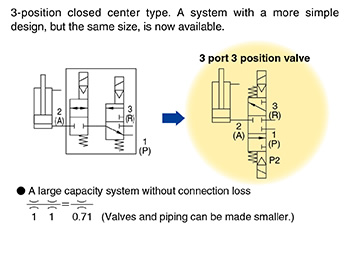

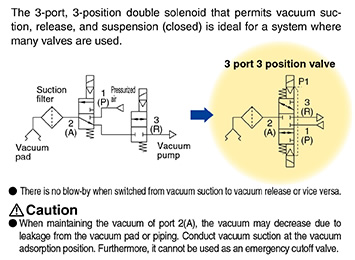

Vacuum suction and release
Intermediate cylinder stops

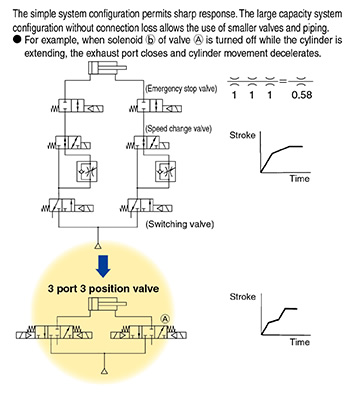

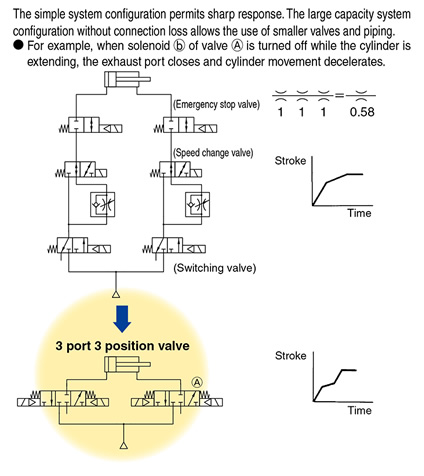

Terminal deceleration and an intermediate speed change circuit can be produced easily.

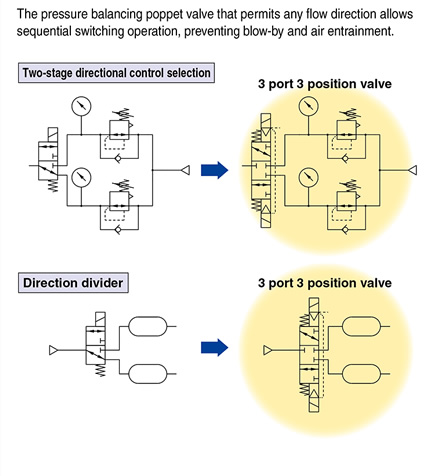

Universal porting could be used as a selector/divider valve.

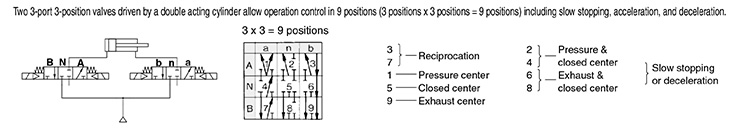

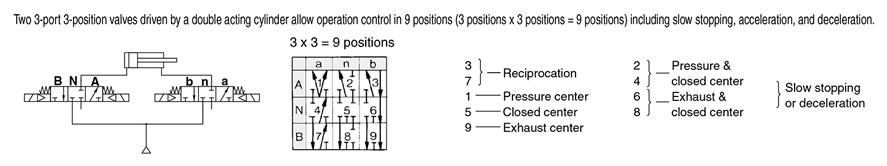

For operation control of double acting cylinders
