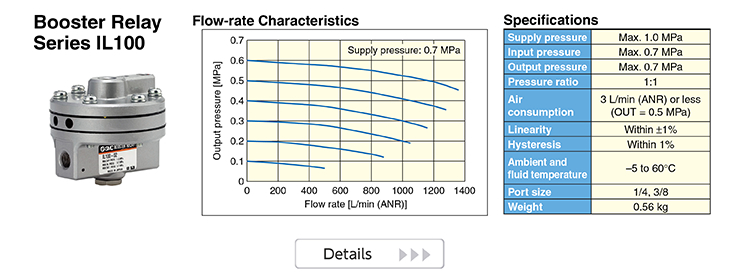

Booster Relay IL100/XT240
|
・Used when the piping distance between the instrumentation and
operational area is long, or when the operational area has a large capacity ・Can help accelerate actuation speed considerably |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| IL100 | Rc1/4, 3/8 | 1：1 | 0.7MPa |
| XT240 | Rc. NPT 1/4 (SIG), 1 (SUP. OUT) | 1：1 | 0.7MPa |
Booster RelayIL100/XT240
| Series | Download |
|---|---|
| IL100 |
|
| XT240 |
|
■Maximum flow rate: Approx.6000 L/min (ANR)

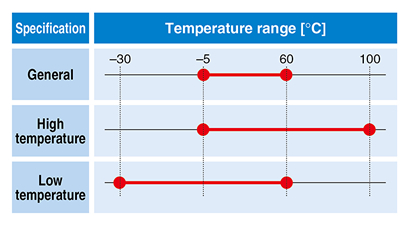

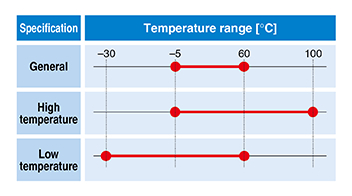

■Fluid temperature

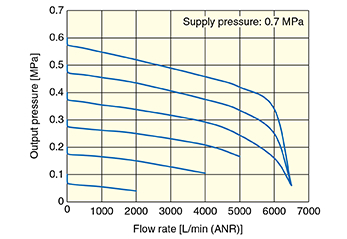

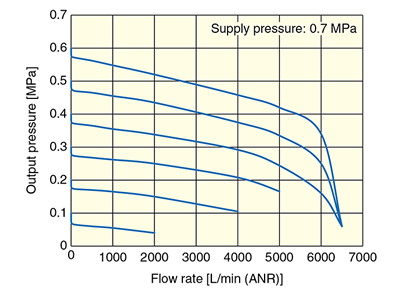

■Flow-rate characteristics

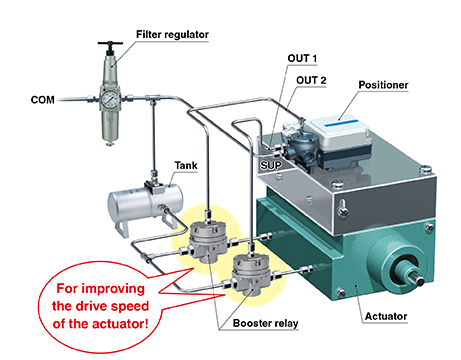

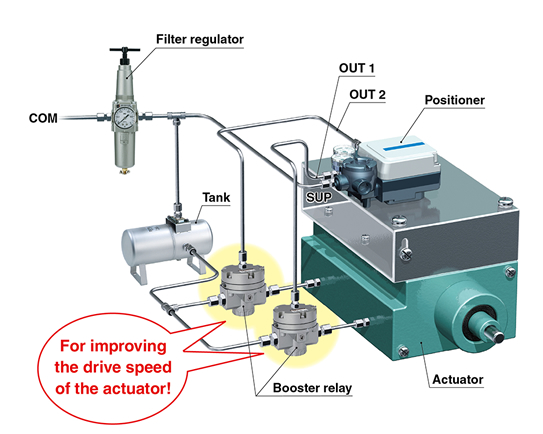

■Application Example
■Related Equipment
