3-Color Display Digital Flow Switch for PVC Piping PF3W
|
・Applicable fluid: Deionized water and chemical liquids, etc
・3-color/2-screen display ・IP65 compliant, non-grease type ・Fluid temperature : 0 to 70℃ ・PVC pipe O.D.: 25A, 30A |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
|---|---|
| PF3W | 10 to 100 30 to 250 |
3-Color Display Digital Flow Switch for PVC PipingPF3W
| Series | Download |
|---|---|
| PF3W |
|

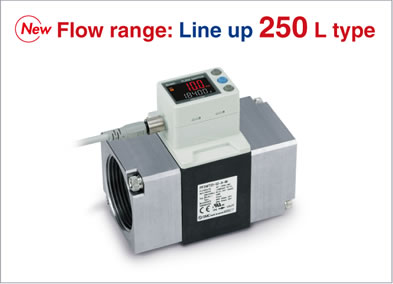

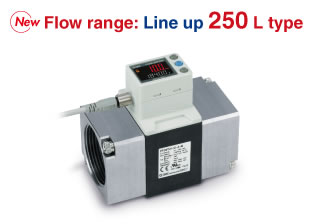

■Flow range: Line up 250 L type New

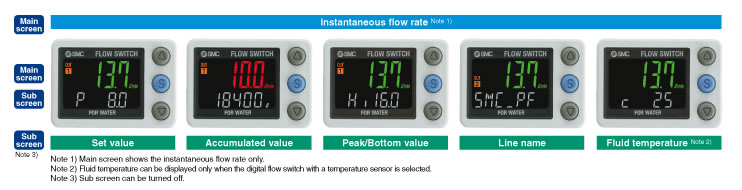

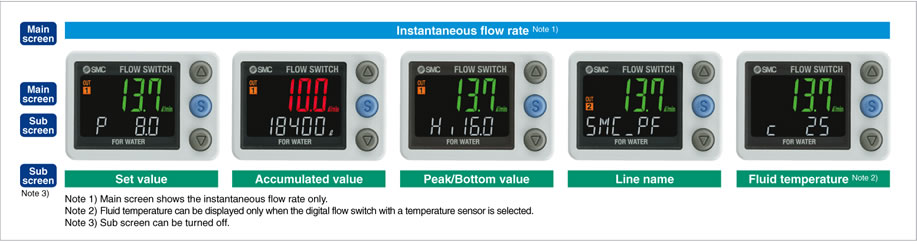

■3-color/2-screen display

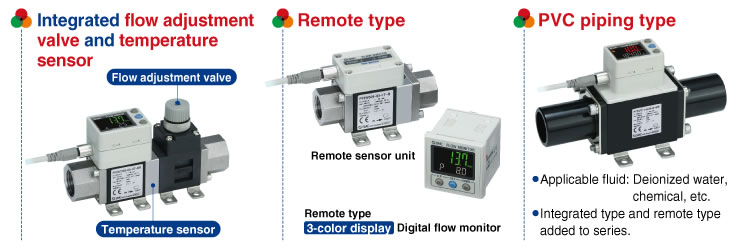

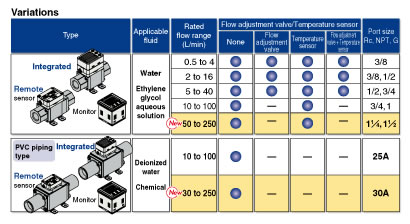

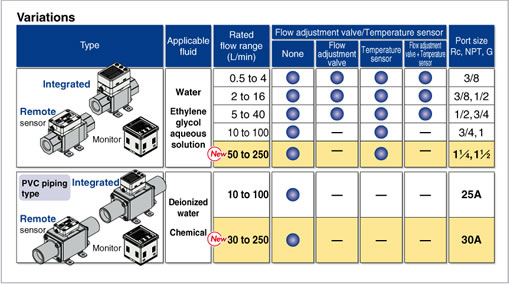

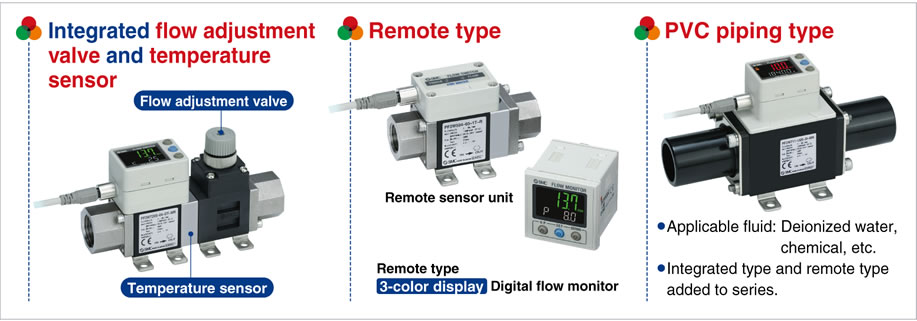

■Adding Variation

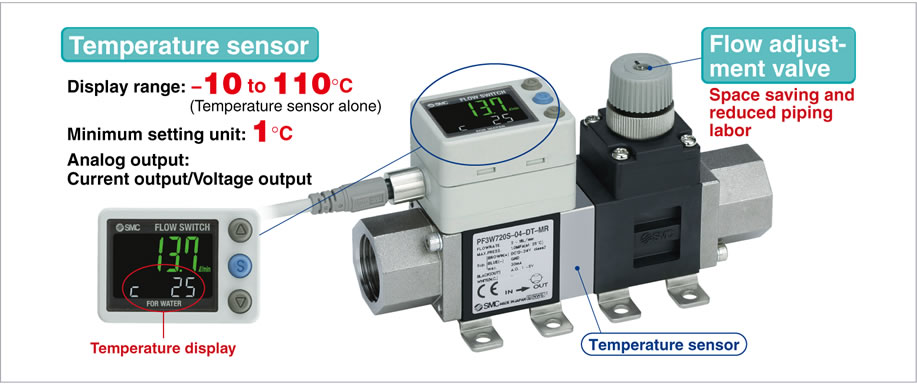

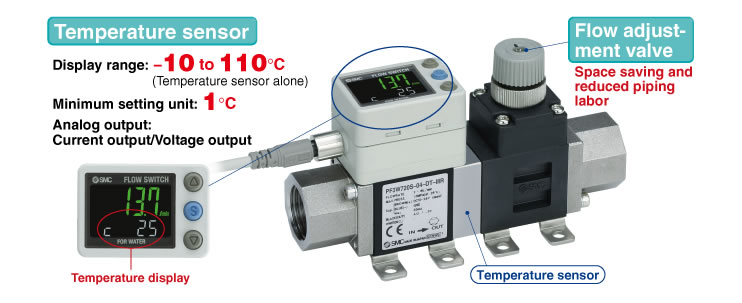

■Temperature sensor and Integrated flow adjustment valve

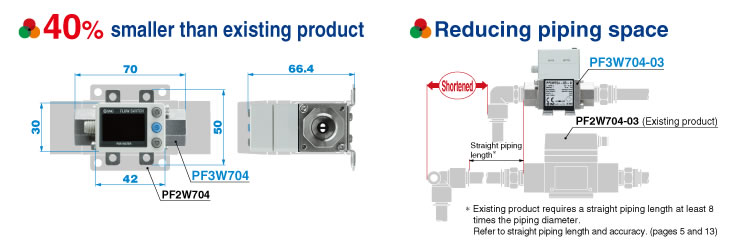

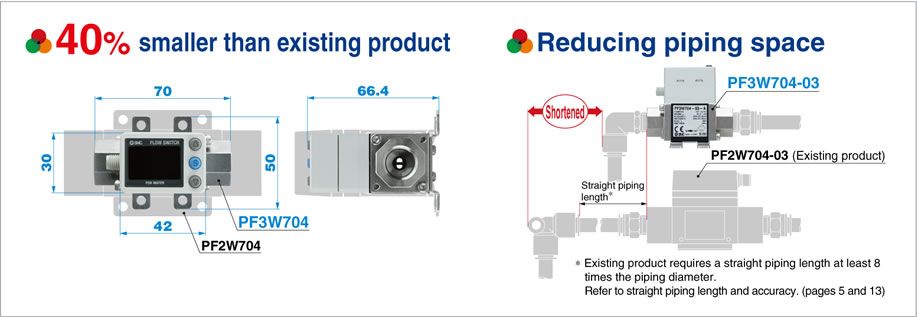

■Space-saving

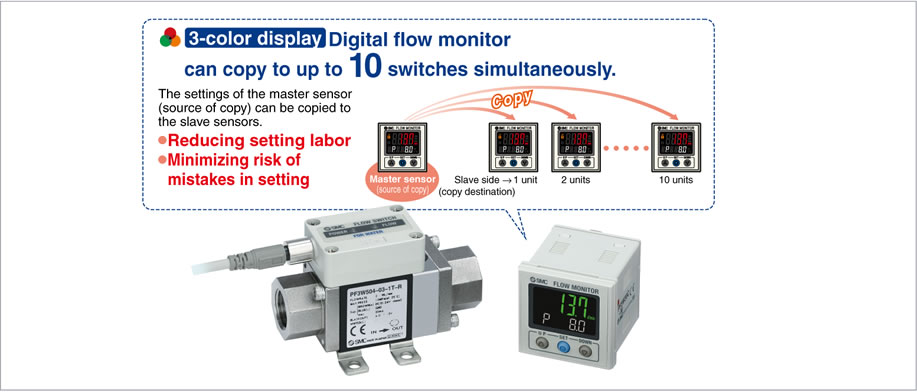

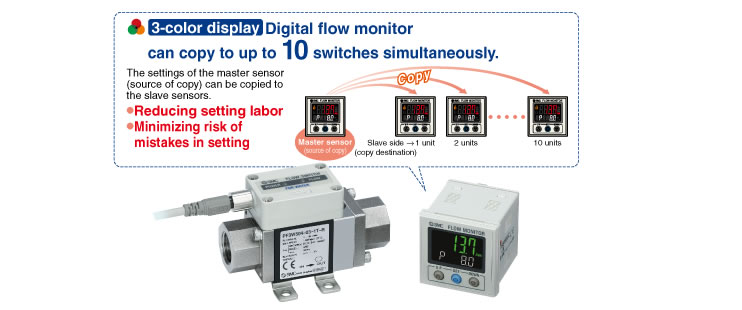

■3-color display Digital flow monitor

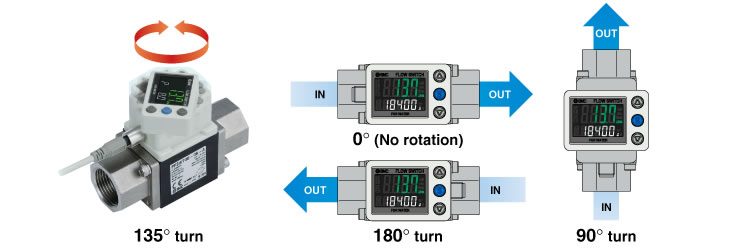

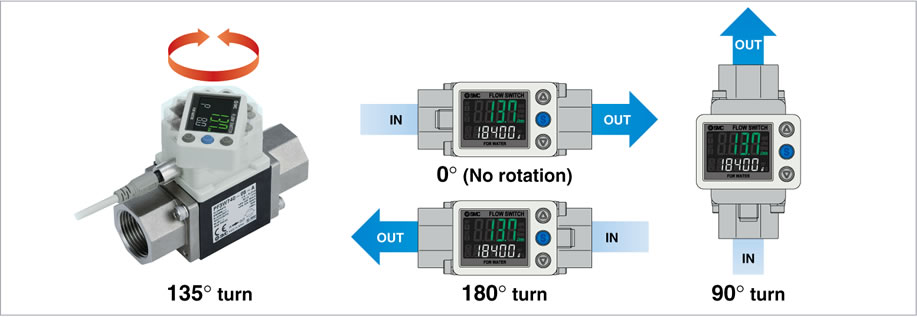

■Rotatable display
Display can be rotated in increments of 45° to suit the installation conditions.
Easy operation, improved visibility.
Counterclockwise 90° Clockwise 225°

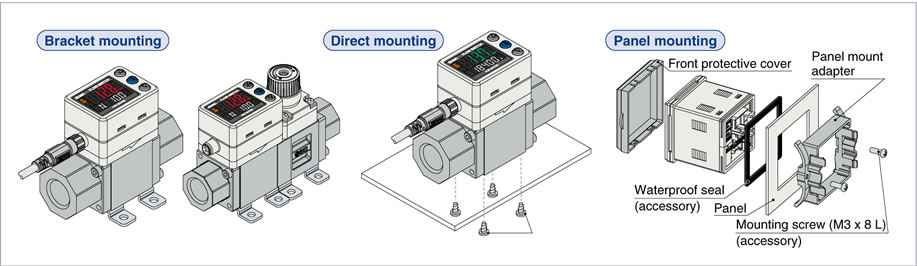

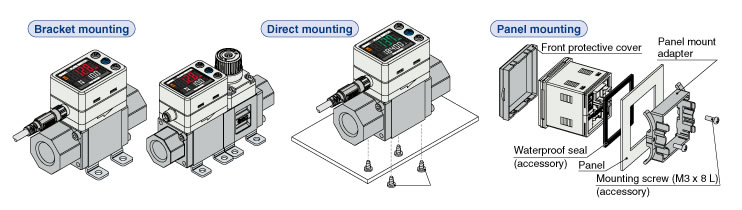

■Mounting
■Other Features
IP65 Compliant
Fluid temperature: 0 to 90°C
Ethylene glycol aqueous solution can be used

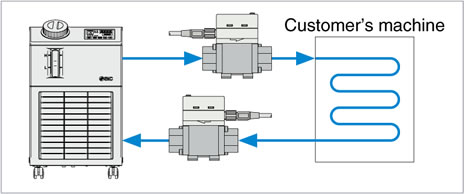

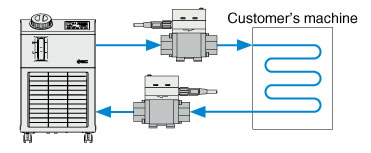

Example) Flow control of the circulating fluid in a chiller
■Non-grease type
