Refrigerated Air Dryer For Use in Europe, Asia and Oceania IDFA
|

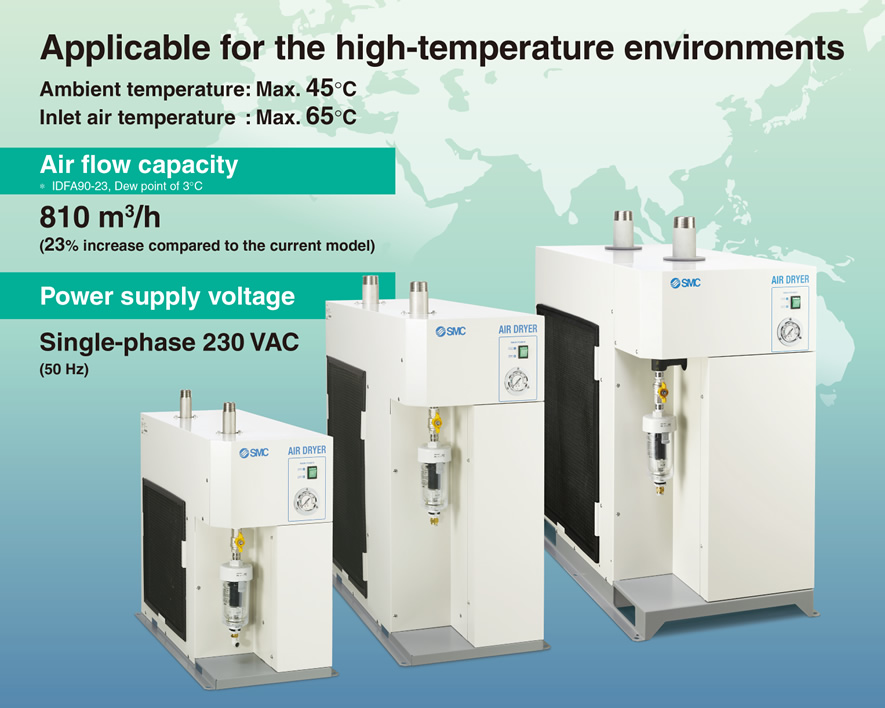

・Applicable for the high-temperature environments
Ambient temperature : Max. 45℃ Inlet air temperature : Max. 65℃ ・Increased air flow capacity ・Power supply voltage: Single-phase 230 VAC (50 Hz) |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |

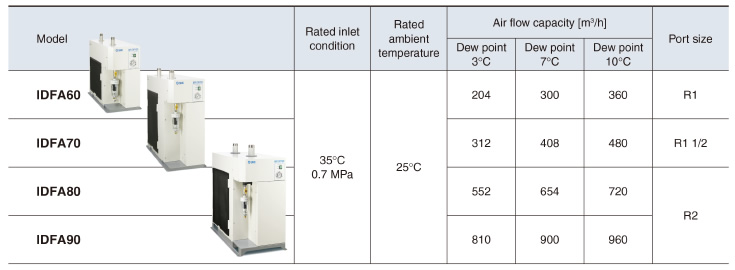

Model | Flow characteristics 4/2 → 3/5 (A/B → E) C［dm3/（s・bar）］ |
|---|---|---|---|---|---|---|
| IDFA60 | 35℃ 0.7MPa |
204 | 300 | 360 | R410A(HFC) GWP：2088 |
R1 |
| IDFA70 | 35℃ 0.7MPa |
312 | 408 | 480 | R410A(HFC) GWP：2088 |
R1 1/2 |
| IDFA80 | 35℃ 0.7MPa |
552 | 654 | 720 | R410A(HFC) GWP：2088 |
R2 |
| IDFA90 | 35℃ 0.7MPa |
810 | 900 | 960 | R410A(HFC) GWP：2088 |
R2 |
Refrigerated Air Dryer　For Use in Europe, Asia and OceaniaIDFA
| Series | Download |
|---|---|
| IDFA60 |
|
| IDFA70 |
|
| IDFA80 |
|
| IDFA90 |
|

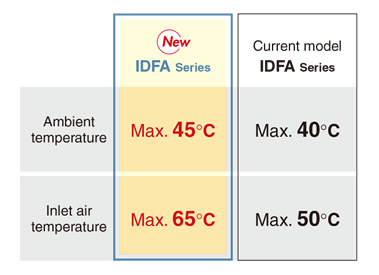

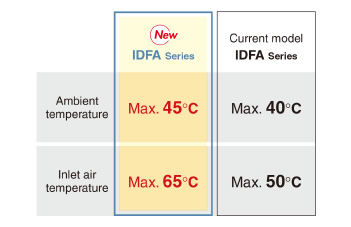

■Applicable for the hightemperature environments

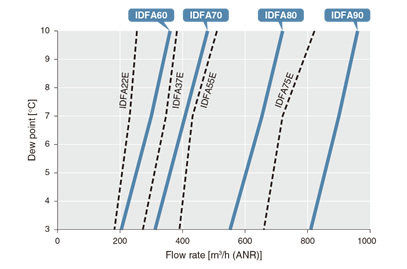

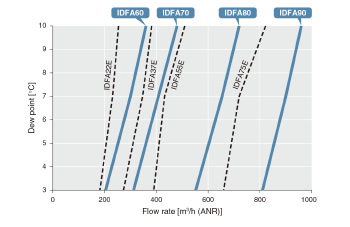

■Increased air flow capacity

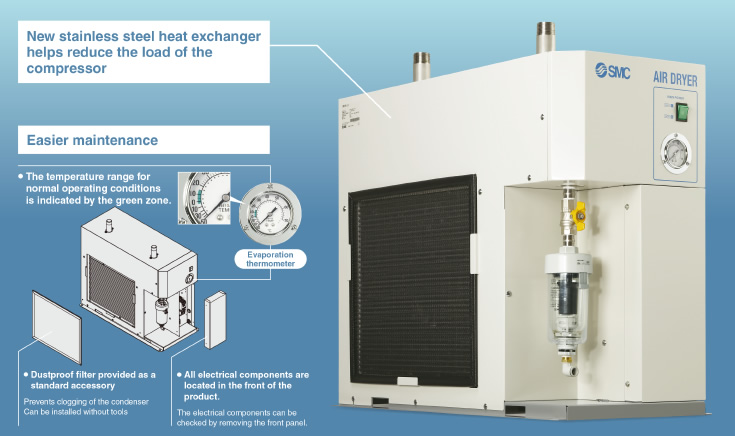

■Features ①

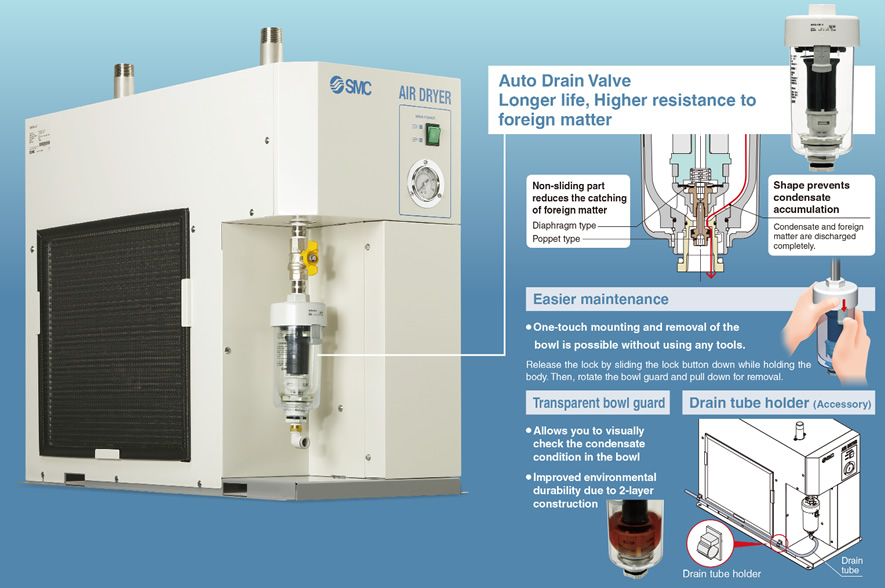

■Features ②

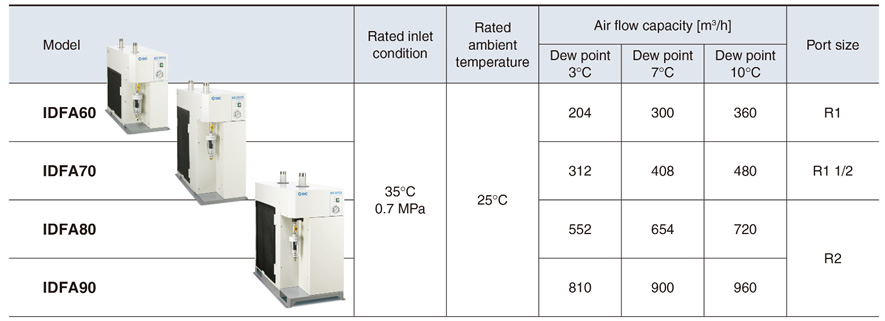

■Series Variations
■Options
・Cool compressed air output ［New］
・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual ［New］
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain
■Optional accessories
・Foundation bolt set
・Piping adapter
・Bypass piping set ［New］

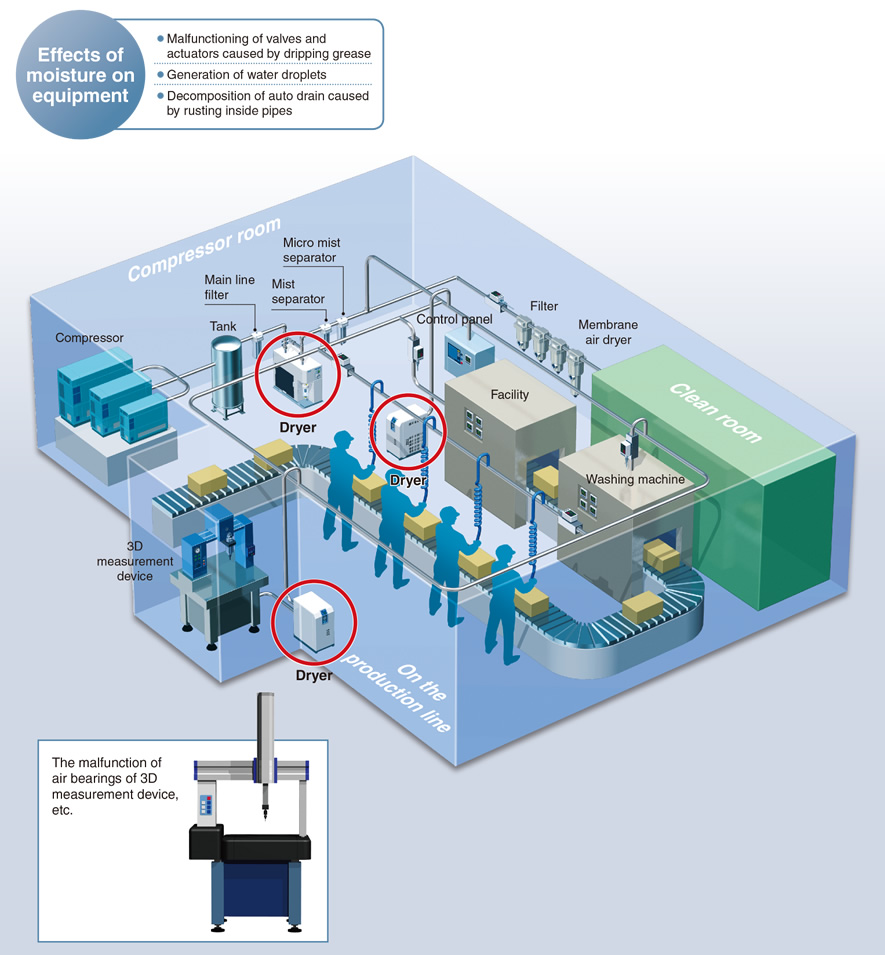

■Protect Pneumatic Equipment from Moisture!
An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
