High-Precision Digital Pressure Switch ISE7□/7□G

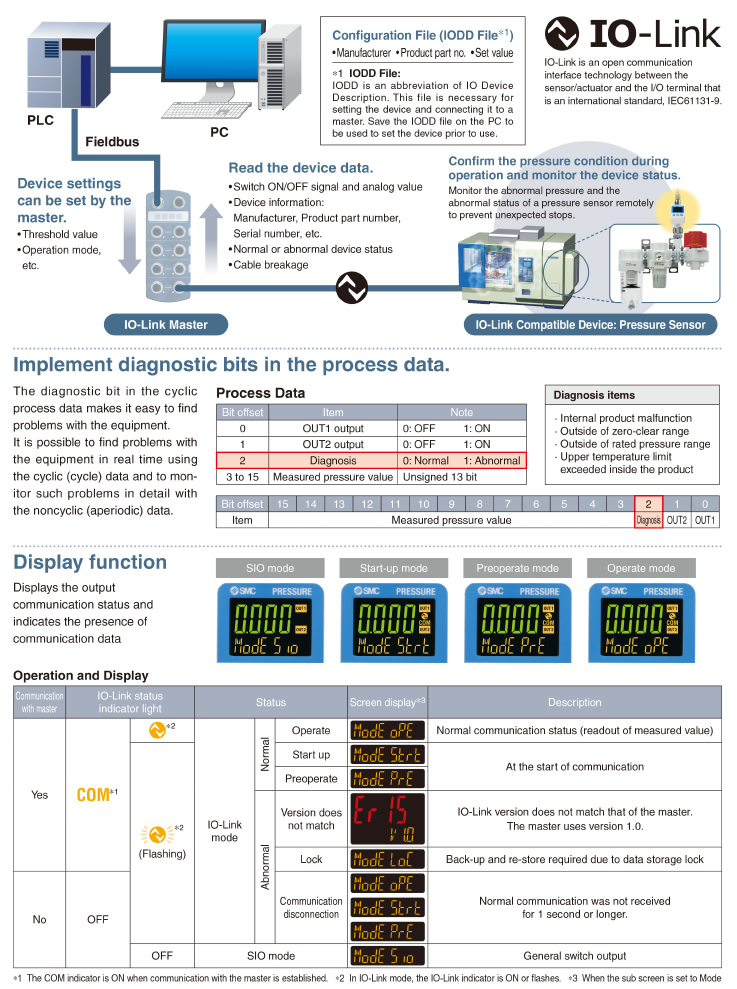

	・IO-Link version V1.1 ・Process data length 2-byte input ・Transmission speed COM2 (38.4 kbps) ・Minimum cycle time 2.3 ms ・IO-Link port type Class A

Data Download CAD Manual DoC PDF

Other Data	Safety Instructions　 Pressure Switches/Flow Switches/Precautions　 Pressure Switch Series Variations/Application Example　 Glossary of Terms/Technical Information　 Green Procurement (RoHS)

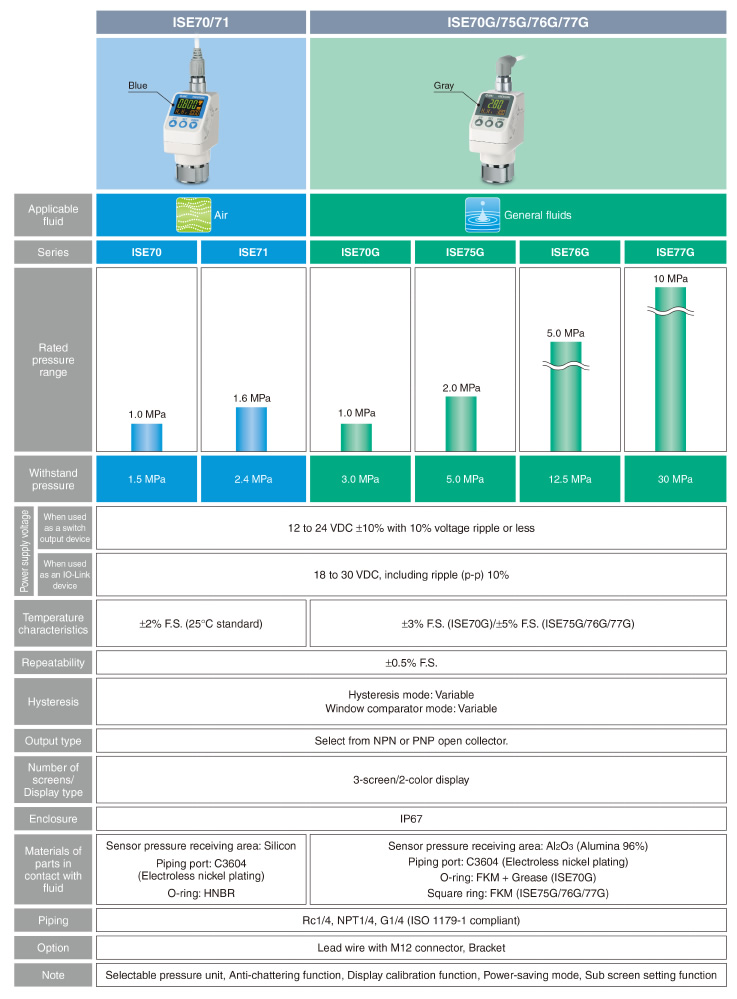

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
ISE70	Air	Positive pressure	0 to 1 MPa
ISE71	Air	Positive pressure	0 to 1.6 MPa
ISE70G	Air General fluids	Positive pressure	0 to 1 MPa
ISE75G	Air General fluids	Positive pressure	0 to 2 MPa
ISE76G	Air General fluids	Positive pressure	0 to 5 MPa
ISE77G	Air General fluids	Positive pressure	0 to 10 MPa

High-Precision Digital Pressure SwitchISE7□/7□G

Series	Flow characteristics 4/2→3/5（A/B→E） b	Download
ISE70	Positive pressure
ISE71	Positive pressure
ISE70G	Positive pressure
ISE75G	Positive pressure
ISE76G	Positive pressure
ISE77G	Positive pressure

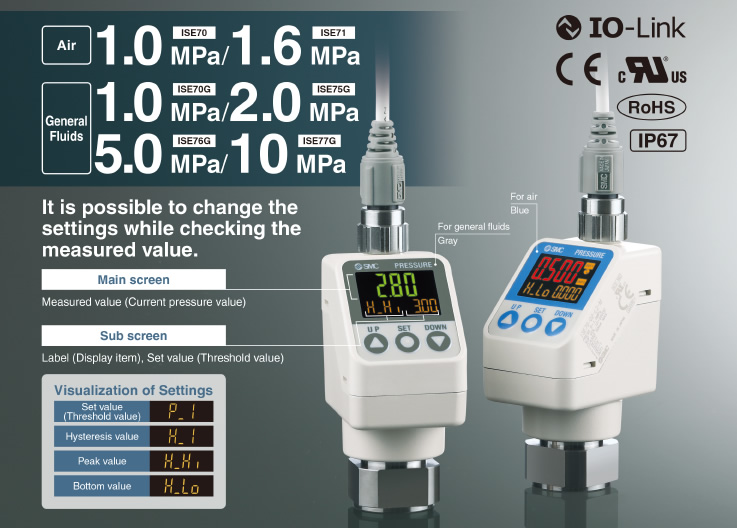

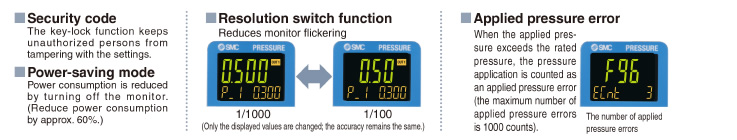

■It is possible to change the settings while checking the measured value.

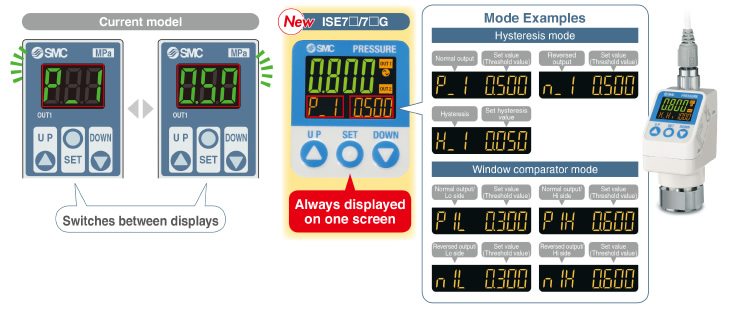

■Visualization of Settings

The sub screen (label) shows the item to be set.

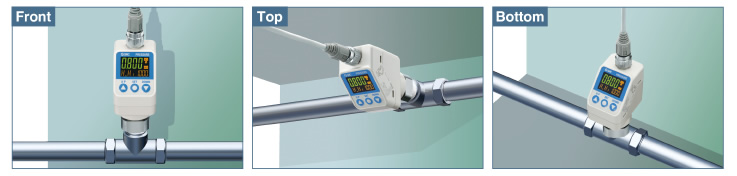

■Angled display

Good visibility from various mounting positions

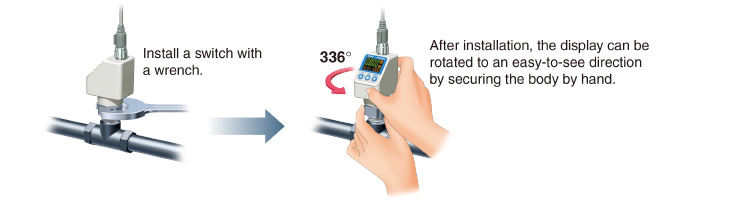

■Rotating display

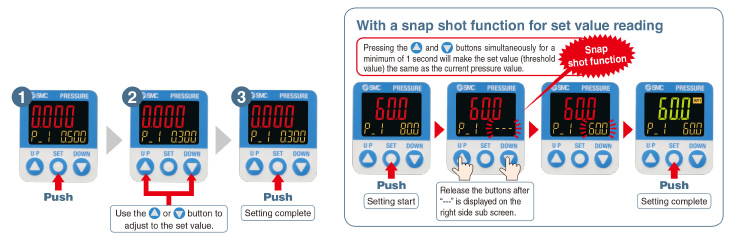

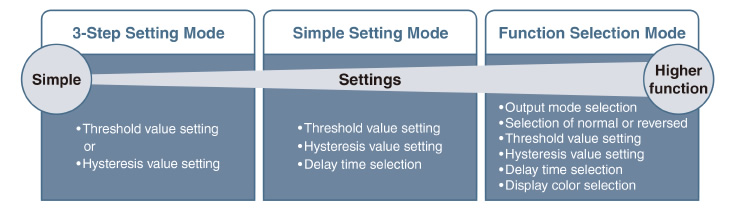

■Simple 3-Step Setting

When the SET button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the SET button is pressed and the hysteresis value (H_1) is being displayed, the hysteresis value can be set.
