2-Layer Soft Fluoropolymer Tubing TQ

	・Carries fluid such as solvent with a soft and abrasion resistant tube. ・2-layer structure 　Outer layer: Special nylon resin 　Inner layer: Special fluoropolymer ・Internal smoothness: Equivalent to Ra 0.02 μm

Data Download PDF

Other Data	Safety Instructions　 Fittings and Tubing/Precautions　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
TQ	φ4, φ6, φ8, φ10, φ12	Translucent (Material color)	Air, Water, Inert gas, Solvent

2-Layer Soft Fluoropolymer TubingTQ

Series	Download
TQ

■Carries fluid such as solvent with a soft and abrasion resistant tube.

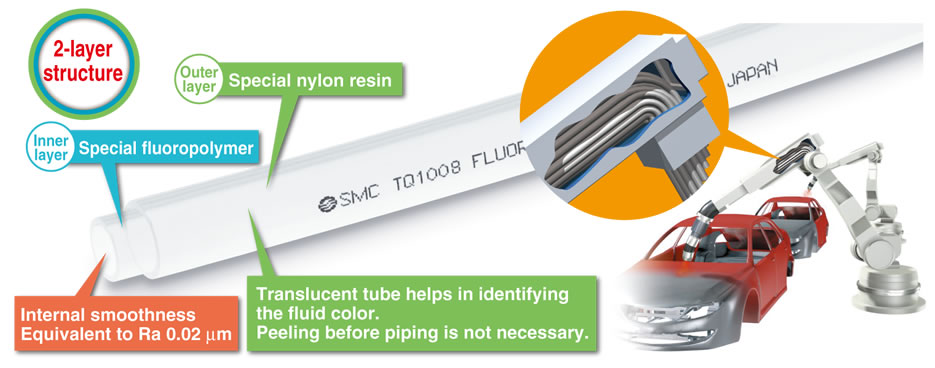

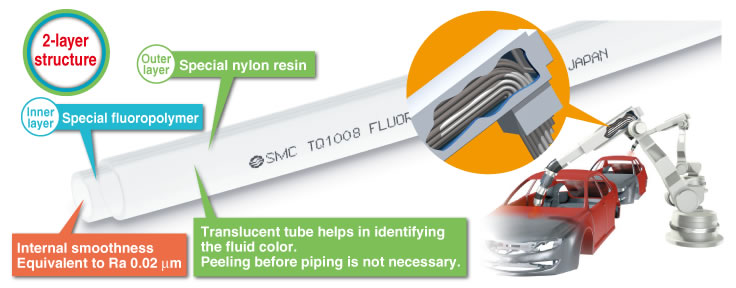

2-layer structure

Outer layer Special nylon resin
Inner layer Special fluoropolymer

■Flexibility Improved by up to 55%^*1

Minimum bending radius (Tube close bend radius)
TQ: 9 mm　TL: 20 mm
(Fluoropolymer Tubing, Super PFA)

*1. Compared with SMC Fluoropolymer Tubing/TL (ø6 x ø4)

■Reduced to 1/30

Wearing of outer layer tube TQ: 1 mg^*2 　TL: 30 mg^*2 (Fluoropolymer Tubing)

*2. Based on friction test of tubes

■Weight reduced by approximately 44%^*3

*3. 2-Layer Soft Fluoropolymer Tubing (TQ): 26.5 g/m
Fluoropolymer Tubing (TL): 47 g/m (o8 x o6)

■Applications

Automobile, Semiconductor, Food, Medical, Machine tools

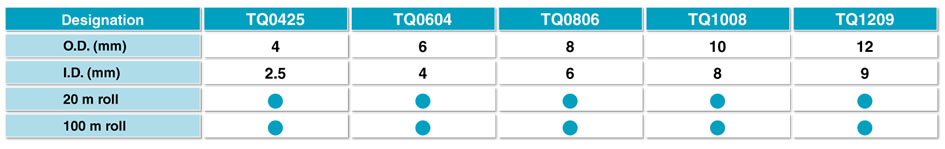

■Series Variations
