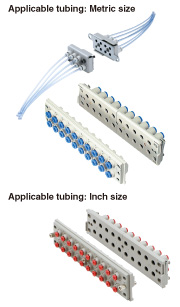

Rectangular Multi-connector KDM
Products » WEB Catalog » Fittings and Tubing » Fittings for General Purposes(S Couplers/Multi-connectors)
・One-touch installation and removal of multi-tubes
・Prevents installation mistakes ・Built-in One-touch fittings |
|
Other Data |
---|
Series | Flow characteristics 4/2→3/5(A/B→E) C[dm3/(s・bar)] |
Flow characteristics 4/2→3/5(A/B→E) b |
Applicable cylinder size |
---|---|---|---|
KDM6-02-X955-1 | 6 | Metric | φ2 |
KDM | 10,20 | Metric | φ3.2,φ4,φ6,φ8 |
KDM | 10,20 | Inch | φ1/8,φ5/32,φ1/4,φ5/16 |
KDM-X1053 | 6, 10, 20 | Metric | φ10, φ12 |
Rectangular Multi-connectorKDM
Series | Applicable cylinder size |
Download |
---|---|---|
KDM6-02-X955-1 | φ2 |
|
KDM | φ3.2,φ4,φ6,φ8 |
|
KDM | φ1/8,φ5/32,φ1/4,φ5/16 |
|
KDM-X1053 | φ10, φ12 |
|
